嘎嘣脆的树莓派系统

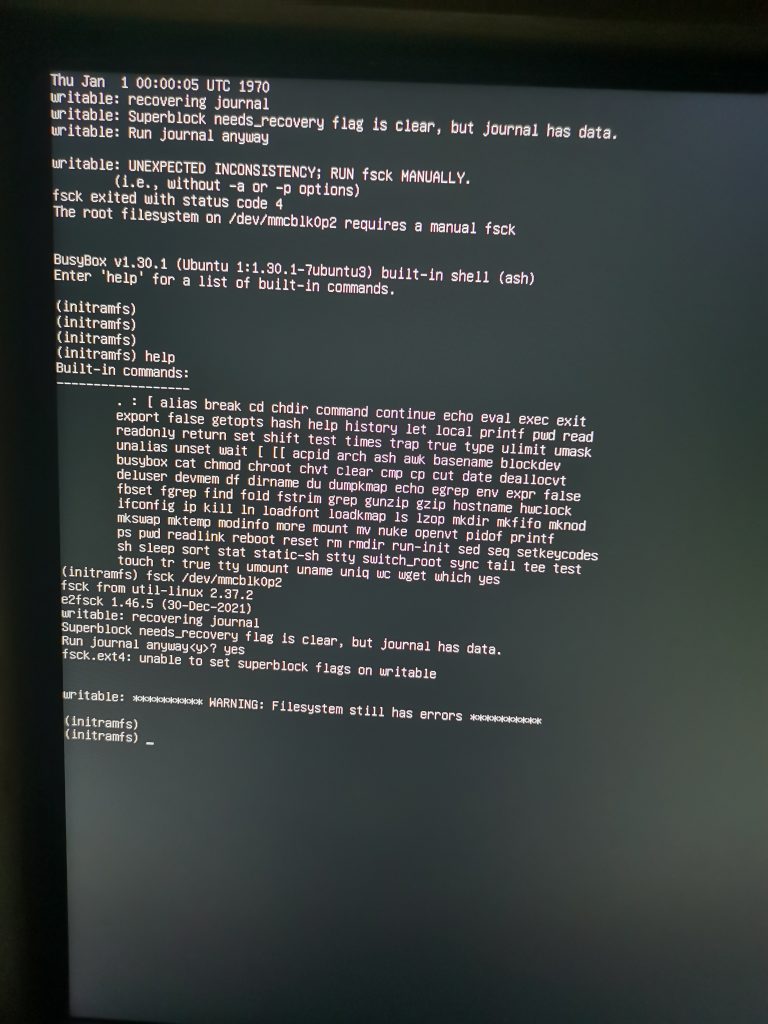

就是说再也不敢不shutdown就拔电源了，这张树莓派sd卡彻底废了，无法恢复的那种 🙁

连带着 code-server 和 jupyter 消失在了历史的长河中。里面的 leetcode 代码和以前做的一些 python 学习资料连带着g了，我真的会谢

强化学习 Pytorch

个人强化学习过程，Q-learning（基础）-> DQN -> AC -> A2C / A3C -> DDPG -> TD3

DQN

算法简要说明：采用经验回放与神经网络对Q-learning进行优化，使其能够输入连续的数，并更好的利用数据。

参考代码

"""
https://www.bilibili.com/read/cv13271394
"""
import torch
import torch.nn as nn
import torch.nn.functional as F
import numpy as np
import gym

# 项目参数（超参数）
BATCH_SIZE = 32  # 随机抽取BATCH_SIZE条数据。
LR = 0.01  # 学习率 （learning rate）
EPSILON = 0.9  # # 最优选择动作百分比 （greedy policy）
GAMMA = 0.9  # 奖励递减参数 （reward discount）
TARGET_REPLACE_ITER = 100  # Q 现实网络的更新频率 （target update frequency）
MEMORY_CAPACITY = 2000  # 记忆库大小
env = gym.make('CartPole-v0')  # 导入模拟实验,创建一个实验环境
env = env.unwrapped  # 还原env的原始配置， if 不还原就会限制step的次数(<200) 还原后就不受限制了
N_ACTIONS = env.action_space.n  # 杆子能做的动作 # 查看这个环境中可用的action有多少个，返回int
N_STATES = env.observation_space.shape[0]  # 杆子能获取的环境信息数 #查看这个环境中observation的特征有多少个，返回int
ENV_A_SHAPE = 0 if isinstance(env.action_space.sample(), int) else env.action_space.sample().shape  # to confirm the shape


# 定义神经网络class
class Net(nn.Module):
    def __init__(self, ):
        super(Net, self).__init__()
        # 这里以一个动作为作为观测值进行输入，然后把他们输出给50个神经元
        # N_STATES 与 图像的特征值个数有关
        self.fc1 = nn.Linear(N_STATES, 50)
        # N_ACTIONS 与 能做的动作个数有关
        self.fc1.weight.data.normal_(0, 0.1)  # 初始化权重，用二值分布来随机生成参数的值
        # 经过50个神经元运算过后的数据， 把每个动作的价值作为输出。
        #
        self.out = nn.Linear(50, N_ACTIONS)  # 做出每个动作后，每个动作的价值作为输出。
        self.out.weight.data.normal_(0, 0.1)  # 初始化权重，用二值分布来随机生成参数的值
        # 输入-当前状态 action --Net网络--输出--》 所有动作价值

    def forward(self, x):
        x = self.fc1(x)
        x = F.relu(x)
        actions_value = self.out(x)
        return actions_value


net = Net()


# 定义DQN 网络class
class DQN(object):
    def __init__(self):
        # 建立一个评估网络（eaval） 和 Q现实网络 （target）
        self.eval_net, self.target_net = Net(), Net()
        # 用来记录学习到第几步了
        self.learn_step_counter = 0  # for target updating
        # 用来记录当前指到数据库的第几个数据了
        self.memory_counter = 0  # for storing memory
        # MEMORY_CAPACITY = 2000 ， 限制了数据库只能记住2000个。前面的会被后面的覆盖
        # 一次存储的数据量有多大   MEMORY_CAPACITY 确定了memory数据库有多大 ，  后面的 N_STATES * 2 + 2 是因为 两个 N_STATES（在这里是4格子，因为N_STATES就为4）  + 一个 action动作（1格） + 一个 rward（奖励）
        self.memory = np.zeros((MEMORY_CAPACITY, N_STATES * 2 + 2))  # initialize memory
        # 优化器，优化评估神经网络（仅优化eval）
        self.optimizer = torch.optim.Adam(self.eval_net.parameters(), lr=LR)
        self.loss_func = nn.MSELoss()

    # 进行选择动作
    def choose_action(self, x):
        # 获取输入
        x = torch.unsqueeze(torch.FloatTensor(x), 0)
        # input only one sample
        # 在大部分情况，我们选择 去max-value
        if np.random.uniform() < EPSILON:  # greedy # 随机结果是否大于EPSILON（0.9）
            actions_value = self.eval_net.forward(x)  # if 取max方法选择执行动作
            action = torch.max(actions_value, 1)[1].data.numpy()
            action = action[0] if ENV_A_SHAPE == 0 else action.reshape(ENV_A_SHAPE)  # return the argmax index
        # 在少部分情况，我们选择 随机选择 （变异）
        else:  # random   # not if 取随机方法执行动作。
            action = np.random.randint(0, N_ACTIONS)
            action = action if ENV_A_SHAPE == 0 else action.reshape(ENV_A_SHAPE)
        # 输入动作action
        return action

    # 存储数据
    # 本次状态，执行的动作，获得的奖励分， 完成动作后产生的下一个状态。
    # 存储这四个值
    def store_transition(self, s, a, r, s_):
        # 把所有的记忆捆在一起，以 np类型
        # 把 三个矩阵 s ,[a,r] ,s_  平铺在一行 [a,r]是因为 他们都是 int 没有 [] 就无法平铺 ，并不代表把他们捆在一起了
        transition = np.hstack((s, [a, r], s_))
        # index 是 这一次录入的数据在 3000 的哪一个位置
        index = self.memory_counter % MEMORY_CAPACITY
        # 如果，记忆超过上线，我们重新索引。即覆盖老的记忆。
        self.memory[index, :] = transition
        self.memory_counter += 1

    # 从存储学习数据
    #  target 是 达到次数后更新， eval net是 每次learn 就进行更新
    def learn(self):
        # target parameter update  是否要更新现实网络
        # target Q现实网络 要间隔多少步跟新一下。 如果learn步数 达到 TARGET_REPLACE_ITER  就进行一次更新
        if self.learn_step_counter % TARGET_REPLACE_ITER == 0:
            # 把最新的eval 预测网络 推 给target Q现实网络
            # 也就是变成，还未变化的eval网
            self.target_net.load_state_dict(self.eval_net.state_dict())  # 把 eval的所有参数 赋值到 target中
        self.learn_step_counter += 1

        #  eval net是 每次learn 就进行更新
        #  更新逻辑就是从记忆库中随机抽取BATCH_SIZE个（32个）数据。
        sample_index = np.random.choice(MEMORY_CAPACITY, BATCH_SIZE)  # 从 数据库中 随机 抽取 BATCH_SIZE条数据
        b_memory = self.memory[sample_index, :]  # 把这BATCH_SIZE个（32个）数据打包
        # 下面这些变量是 32个数据打包的变量
        b_s = torch.FloatTensor(b_memory[:, :N_STATES])  # 32个记忆的包，包里是（当时的状态）
        b_a = torch.LongTensor(b_memory[:, N_STATES:N_STATES + 1].astype(int))  # 32个记忆的包，包里是（当时做出的动作）
        b_r = torch.FloatTensor(b_memory[:, N_STATES + 1:N_STATES + 2])  # 32个记忆的包，包里是 （当初获得的奖励）
        b_s_ = torch.FloatTensor(b_memory[:, -N_STATES:])  # 32个记忆的包，包里是 （执行动作后，下一个动作的状态）

        # q_eval w.r.t the action in experience
        # q_eval的学习过程
        # self.eval_net(b_s).gather(1, b_a)  输入我们包（32条）中的所有状态 并得到（32条）所有状态的所有动作价值， .gather(1,b_a) 只取这32个状态中 的 每一个状态的最大值
        # 预期价值计算 ==  随机32条数据中的最大值
        q_eval = self.eval_net(b_s).gather(1, b_a)  # shape (batch, 1)

        # 输入下一个状态 进入我们的现实网络 输出下一个动作的价值  .detach() 阻止网络反向传递，我们的target需要自己定义该如何更新，它的更新在learn那一步
        q_next = self.target_net(b_s_).detach()  # detach from graph, don't backpropagate
        # q_target 实际价值的计算  ==  当前价值 + GAMMA（未来价值递减参数） * 未来的价值
        q_target = b_r + GAMMA * q_next.max(1)[0].view(BATCH_SIZE, 1)  # shape (batch, 1)
        # q_eval预测值， q_target真实值
        loss = self.loss_func(q_eval, q_target)
        # 根据误差，去优化我们eval网
        # 因为这是eval的优化器
        self.optimizer.zero_grad()
        loss.backward()
        self.optimizer.step()


# 运行总流程！！！

dqn = DQN()  # 实例化DQN类，也就是实例化这个强化学习网络
print('\nCollecting experience...')
# 进行2100次训练
for i_episode in range(2100):
    # 每一次新的训练
    # 开始，会重置我们的env， 每一次训练的环境都是独立的而完全一样的，只有网络记忆是一直留存的
    s = env.reset()  # 获得初始化 observation 环境特征
    ep_r = 0  # 作为一个计数变量，来统计我第n次训练。 完成所有动作的分的总和

    # 开始实验循环
    # 只有env认为 这个实验死了，才会结束循环
    while True:
        env.render()  # 刷新环境状态  ， 使得screen 可以联系的动
        # 根据 输入的环境特征s  输出选择动作 a
        a = dqn.choose_action(s)
        # 通过当前选择的动作得到，执行这个动作后的结果也就是，下一步状态s_（也就是observation） 特征值矩阵  ，
        # 立即回报r 返回动作执行的奖励 ， r是一个float类型
        # 终止状态 done （done=True时环境结束） ， done 是 bool
        # 调试信息 info （一般没用）
        s_, r, done, info = env.step(a)  # env.step(a) 是执行 a 动作   它返回的就是 s_ ,r ,done , info
        # 到这里，预测流程就结束........

        # 下面是对预测的结果进行评价与修正.......
        # 因为 env.step(a)返回的rward难学，所以下面是对rward的规则进行调整，让训练时间短一点
        # 方便理解，可以认为它还是r (返回执行动作的奖励)
        x, x_dot, theta, theta_dot = s_
        r1 = (env.x_threshold - abs(x)) / env.x_threshold - 0.8
        r2 = (env.theta_threshold_radians - abs(theta)) / env.theta_threshold_radians - 0.5
        r = r1 + r2
        #####

        # 存储数据
        # 每完成一个动作，记忆存储数据一次
        dqn.store_transition(s, a, r, s_)

        # 最终得分 = 每一步得分 求合
        # 最后打印它，看这一次训练，最终得分是多少（可知道总分，但不知道执行了多少个动作，当然你也可以做一个计算器算一下，不难）
        ep_r += r
        # 假如我们总训练2000次，
        # 在训练第i_episode（200）次后，我们数据库中累计的信息超过3000条后。
        # 这个时 dqn中的数据库中的记忆条数  大于 数据库的容量
        if dqn.memory_counter > MEMORY_CAPACITY:
            # 它就会开对去学习。
            # eavl 每学一次就会更新一次  # 它的更新思路是从我历史记忆中随机抽取数据。 #学习一次，就在数据库中随机挑选BATCH_SIZE（32条） 进行打包

            # 而target不一样，它是在我们学习过程中到一定频率（TARGET_REPLACE_ITER，来决定）。它的思路是：target网会去复制eval网的参数
            dqn.learn()
            # 在满足 大于数据库容量的条件下，我再看env.step(a) 返回的done，env是否认为实验结束了
            if done:
                # 如果done=True , 打印这是第n次训练和这次训练的总分
                # 打印这是i_episode次训练 ， Ep_r代表这次的总分
                print('Ep: ', i_episode,
                      '| Ep_r: ', round(ep_r, 2))
        # if done=Truue
        # env判断游戏结束跳出while循环，开始进行下一次训练
        if done:
            break
        # env判断游戏没有结束进行while循环，下次状态变成当前状态， 开始走下一步。
        s = s_

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

"""

https://www.bilibili.com/read/cv13271394

"""

import torch

import torch.nn as nn

import torch.nn.functional as F

import numpy as np

import gym

# 项目参数（超参数）

BATCH_SIZE = 32 # 随机抽取BATCH_SIZE条数据。

LR = 0.01 # 学习率（learning rate）

EPSILON = 0.9 # # 最优选择动作百分比（greedy policy）

GAMMA = 0.9 # 奖励递减参数（reward discount）

TARGET_REPLACE_ITER = 100 # Q 现实网络的更新频率（target update frequency）

MEMORY_CAPACITY = 2000 # 记忆库大小

env = gym.make('CartPole-v0') # 导入模拟实验,创建一个实验环境

env = env.unwrapped # 还原env的原始配置， if 不还原就会限制step的次数(<200) 还原后就不受限制了

N_ACTIONS = env.action_space.n # 杆子能做的动作 # 查看这个环境中可用的action有多少个，返回int

N_STATES = env.observation_space.shape[0] # 杆子能获取的环境信息数 #查看这个环境中observation的特征有多少个，返回int

ENV_A_SHAPE = 0 if isinstance(env.action_space.sample(), int) else env.action_space.sample().shape # to confirm the shape

# 定义神经网络class

class Net(nn.Module):

def __init__(self, ):

super(Net, self).__init__()

# 这里以一个动作为作为观测值进行输入，然后把他们输出给50个神经元

# N_STATES 与图像的特征值个数有关

self.fc1 = nn.Linear(N_STATES, 50)

# N_ACTIONS 与能做的动作个数有关

self.fc1.weight.data.normal_(0, 0.1) # 初始化权重，用二值分布来随机生成参数的值

# 经过50个神经元运算过后的数据，把每个动作的价值作为输出。

self.out = nn.Linear(50, N_ACTIONS) # 做出每个动作后，每个动作的价值作为输出。

self.out.weight.data.normal_(0, 0.1) # 初始化权重，用二值分布来随机生成参数的值

# 输入-当前状态 action --Net网络--输出--》所有动作价值

def forward(self, x):

x = self.fc1(x)

x = F.relu(x)

actions_value = self.out(x)

return actions_value

net = Net()

# 定义DQN 网络class

class DQN(object):

def __init__(self):

# 建立一个评估网络（eaval）和 Q现实网络（target）

self.eval_net, self.target_net = Net(), Net()

# 用来记录学习到第几步了

self.learn_step_counter = 0 # for target updating

# 用来记录当前指到数据库的第几个数据了

self.memory_counter = 0 # for storing memory

# MEMORY_CAPACITY = 2000 ，限制了数据库只能记住2000个。前面的会被后面的覆盖

# 一次存储的数据量有多大 MEMORY_CAPACITY 确定了memory数据库有多大，后面的 N_STATES * 2 + 2 是因为两个 N_STATES（在这里是4格子，因为N_STATES就为4） + 一个 action动作（1格） + 一个 rward（奖励）

self.memory = np.zeros((MEMORY_CAPACITY, N_STATES * 2 + 2)) # initialize memory

# 优化器，优化评估神经网络（仅优化eval）

self.optimizer = torch.optim.Adam(self.eval_net.parameters(), lr=LR)

self.loss_func = nn.MSELoss()

# 进行选择动作

def choose_action(self, x):

# 获取输入

x = torch.unsqueeze(torch.FloatTensor(x), 0)

# input only one sample

# 在大部分情况，我们选择去max-value

if np.random.uniform() < EPSILON: # greedy # 随机结果是否大于EPSILON（0.9）

actions_value = self.eval_net.forward(x) # if 取max方法选择执行动作

action = torch.max(actions_value, 1)[1].data.numpy()

action = action[0] if ENV_A_SHAPE == 0 else action.reshape(ENV_A_SHAPE) # return the argmax index

# 在少部分情况，我们选择随机选择（变异）

else: # random # not if 取随机方法执行动作。

action = np.random.randint(0, N_ACTIONS)

action = action if ENV_A_SHAPE == 0 else action.reshape(ENV_A_SHAPE)

# 输入动作action

return action

# 存储数据

# 本次状态，执行的动作，获得的奖励分，完成动作后产生的下一个状态。

# 存储这四个值

def store_transition(self, s, a, r, s_):

# 把所有的记忆捆在一起，以 np类型

# 把三个矩阵 s ,[a,r] ,s_ 平铺在一行 [a,r]是因为他们都是 int 没有 [] 就无法平铺，并不代表把他们捆在一起了

transition = np.hstack((s, [a, r], s_))

# index 是这一次录入的数据在 3000 的哪一个位置

index = self.memory_counter % MEMORY_CAPACITY

# 如果，记忆超过上线，我们重新索引。即覆盖老的记忆。

self.memory[index, :] = transition

self.memory_counter += 1

# 从存储学习数据

# target 是达到次数后更新， eval net是每次learn 就进行更新

def learn(self):

# target parameter update 是否要更新现实网络

# target Q现实网络要间隔多少步跟新一下。如果learn步数达到 TARGET_REPLACE_ITER 就进行一次更新

if self.learn_step_counter % TARGET_REPLACE_ITER == 0:

# 把最新的eval 预测网络推给target Q现实网络

# 也就是变成，还未变化的eval网

self.target_net.load_state_dict(self.eval_net.state_dict()) # 把 eval的所有参数赋值到 target中

self.learn_step_counter += 1

# eval net是每次learn 就进行更新

# 更新逻辑就是从记忆库中随机抽取BATCH_SIZE个（32个）数据。

sample_index = np.random.choice(MEMORY_CAPACITY, BATCH_SIZE) # 从数据库中随机抽取 BATCH_SIZE条数据

b_memory = self.memory[sample_index, :] # 把这BATCH_SIZE个（32个）数据打包

# 下面这些变量是 32个数据打包的变量

b_s = torch.FloatTensor(b_memory[:, :N_STATES]) # 32个记忆的包，包里是（当时的状态）

b_a = torch.LongTensor(b_memory[:, N_STATES:N_STATES + 1].astype(int)) # 32个记忆的包，包里是（当时做出的动作）

b_r = torch.FloatTensor(b_memory[:, N_STATES + 1:N_STATES + 2]) # 32个记忆的包，包里是（当初获得的奖励）

b_s_ = torch.FloatTensor(b_memory[:, -N_STATES:]) # 32个记忆的包，包里是（执行动作后，下一个动作的状态）

# q_eval w.r.t the action in experience

# q_eval的学习过程

# self.eval_net(b_s).gather(1, b_a) 输入我们包（32条）中的所有状态并得到（32条）所有状态的所有动作价值， .gather(1,b_a) 只取这32个状态中的每一个状态的最大值

# 预期价值计算 == 随机32条数据中的最大值

q_eval = self.eval_net(b_s).gather(1, b_a) # shape (batch, 1)

# 输入下一个状态进入我们的现实网络输出下一个动作的价值 .detach() 阻止网络反向传递，我们的target需要自己定义该如何更新，它的更新在learn那一步

q_next = self.target_net(b_s_).detach() # detach from graph, don't backpropagate

# q_target 实际价值的计算 == 当前价值 + GAMMA（未来价值递减参数） * 未来的价值

q_target = b_r + GAMMA * q_next.max(1)[0].view(BATCH_SIZE, 1) # shape (batch, 1)

# q_eval预测值， q_target真实值

loss = self.loss_func(q_eval, q_target)

# 根据误差，去优化我们eval网

# 因为这是eval的优化器

self.optimizer.zero_grad()

loss.backward()

self.optimizer.step()

# 运行总流程！！！

dqn = DQN() # 实例化DQN类，也就是实例化这个强化学习网络

print('\nCollecting experience...')

# 进行2100次训练

for i_episode in range(2100):

# 每一次新的训练

# 开始，会重置我们的env，每一次训练的环境都是独立的而完全一样的，只有网络记忆是一直留存的

s = env.reset() # 获得初始化 observation 环境特征

ep_r = 0 # 作为一个计数变量，来统计我第n次训练。完成所有动作的分的总和

# 开始实验循环

# 只有env认为这个实验死了，才会结束循环

while True:

env.render() # 刷新环境状态，使得screen 可以联系的动

# 根据输入的环境特征s 输出选择动作 a

a = dqn.choose_action(s)

# 通过当前选择的动作得到，执行这个动作后的结果也就是，下一步状态s_（也就是observation）特征值矩阵，

# 立即回报r 返回动作执行的奖励， r是一个float类型

# 终止状态 done （done=True时环境结束）， done 是 bool

# 调试信息 info （一般没用）

s_, r, done, info = env.step(a) # env.step(a) 是执行 a 动作它返回的就是 s_ ,r ,done , info

# 到这里，预测流程就结束........

# 下面是对预测的结果进行评价与修正.......

# 因为 env.step(a)返回的rward难学，所以下面是对rward的规则进行调整，让训练时间短一点

# 方便理解，可以认为它还是r (返回执行动作的奖励)

x, x_dot, theta, theta_dot = s_

r1 = (env.x_threshold - abs(x)) / env.x_threshold - 0.8

r2 = (env.theta_threshold_radians - abs(theta)) / env.theta_threshold_radians - 0.5

r = r1 + r2

#####

# 存储数据

# 每完成一个动作，记忆存储数据一次

dqn.store_transition(s, a, r, s_)

# 最终得分 = 每一步得分求合

# 最后打印它，看这一次训练，最终得分是多少（可知道总分，但不知道执行了多少个动作，当然你也可以做一个计算器算一下，不难）

ep_r += r

# 假如我们总训练2000次，

# 在训练第i_episode（200）次后，我们数据库中累计的信息超过3000条后。

# 这个时 dqn中的数据库中的记忆条数大于数据库的容量

if dqn.memory_counter > MEMORY_CAPACITY:

# 它就会开对去学习。

# eavl 每学一次就会更新一次 # 它的更新思路是从我历史记忆中随机抽取数据。 #学习一次，就在数据库中随机挑选BATCH_SIZE（32条）进行打包

# 而target不一样，它是在我们学习过程中到一定频率（TARGET_REPLACE_ITER，来决定）。它的思路是：target网会去复制eval网的参数

dqn.learn()

# 在满足大于数据库容量的条件下，我再看env.step(a) 返回的done，env是否认为实验结束了

if done:

# 如果done=True , 打印这是第n次训练和这次训练的总分

# 打印这是i_episode次训练， Ep_r代表这次的总分

print('Ep: ', i_episode,

'| Ep_r: ', round(ep_r, 2))

# if done=Truue

# env判断游戏结束跳出while循环，开始进行下一次训练

if done:

break

# env判断游戏没有结束进行while循环，下次状态变成当前状态，开始走下一步。

s = s_

Actor Critic

算法简要说明：Actor 基于概率选行为, Critic 基于 Actor 的行为评判行为的得分, Actor 根据 Critic 的评分修改选行为的概率。

说明：现已改正 CSDN 上错误代码并经行优化。Github上代码流程为跑完一次历程再进行网络优化，并且Actor和Critic共用同一个optimizer和loss，CSDN 上代码流程为原论文流程，即一边跑历程，一边训练网络，并且Actor和Critic具有不一样的optimizer和loss。

对比：原论文流程，即 CSDN 代码流程网络训练较慢，但收敛可能较快。但在跑 CartPole-v1 的时候效果还是Github 代码优异，只能说具体问题可以都试试，选择最优的代码流程。

CSDN 参考代码

"""
https://blog.csdn.net/qq_34003876/article/details/107477426
"""
import torch
import torch.nn as nn
import torch.nn.functional as F
import gym
import time
import numpy as np

# Hyper Parameters for Actor
GAMMA = 0.95  # discount factor
LR = 0.01  # learning rate

# Use GPU
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
torch.backends.cudnn.enabled = False  # 非确定性算法


class ActorNetwork(nn.Module):
    def __init__(self, state_dim, action_dim):
        super(ActorNetwork, self).__init__()
        self.fc1 = nn.Linear(state_dim, 20)
        self.fc2 = nn.Linear(20, action_dim)

    def forward(self, x):
        out = torch.relu(self.fc1(x))
        out = self.fc2(out)
        out = torch.softmax(out, dim=0)
        return out

    def initialize_weights(self):
        for m in self.modules():
            nn.init.normal_(m.weight.data, 0, 0.1)
            nn.init.constant_(m.bias.data, 0.01)


class Actor(object):
    # dqn Agent
    def __init__(self, env):  # 初始化
        # 状态空间和动作空间的维度
        self.state_dim = env.observation_space.shape[0]
        self.action_dim = env.action_space.n

        # init network parameters
        self.network = ActorNetwork(state_dim=self.state_dim, action_dim=self.action_dim).to(device)
        self.optimizer = torch.optim.Adam(self.network.parameters(), lr=LR)

        # init some parameters
        self.time_step = 0

    def choose_action(self, observation):
        observation = torch.FloatTensor(observation).to(device)
        network_output = self.network.forward(observation).data.numpy()
        action = np.random.choice(range(network_output.shape[0]), p=network_output)
        return action

    def learn(self, state, action, td_error):
        self.time_step += 1
        # Step 1: 前向传播
        softmax_input = self.network.forward(torch.FloatTensor(state).to(device)).unsqueeze(0)
        action = torch.LongTensor([action]).to(device)
        neg_log_prob = F.cross_entropy(input=softmax_input, target=action)
        # Step 2: 反向传播
        # 这里需要最大化当前策略的价值，因此需要最大化neg_log_prob * tf_error,即最小化-neg_log_prob * td_error
        loss_a = neg_log_prob * td_error
        self.optimizer.zero_grad()
        loss_a.backward()
        self.optimizer.step()


# Hyper Parameters for Critic
EPSILON = 0.01  # final value of epsilon
REPLAY_SIZE = 10000  # experience replay buffer size
BATCH_SIZE = 32  # size of minibatch
REPLACE_TARGET_FREQ = 10  # frequency to update target Q network


class QNetwork(nn.Module):
    def __init__(self, state_dim, action_dim):
        super(QNetwork, self).__init__()
        self.fc1 = nn.Linear(state_dim, 20)
        self.fc2 = nn.Linear(20, 1)  # 这个地方和之前略有区别，输出不是动作维度，而是一维

    def forward(self, x):
        out = F.relu(self.fc1(x))
        out = self.fc2(out)
        return out

    def initialize_weights(self):
        for m in self.modules():
            nn.init.normal_(m.weight.data, 0, 0.1)
            nn.init.constant_(m.bias.data, 0.01)


class Critic(object):
    def __init__(self, env):
        # 状态空间和动作空间的维度
        self.state_dim = env.observation_space.shape[0]
        self.action_dim = env.action_space.n

        # init network parameters
        self.network = QNetwork(state_dim=self.state_dim, action_dim=self.action_dim).to(device)
        self.optimizer = torch.optim.Adam(self.network.parameters(), lr=LR)
        self.loss_func = nn.MSELoss()

        # init some parameters
        self.time_step = 0
        self.epsilon = EPSILON  # epsilon值是随机不断变小的

    def train_Q_network(self, state, reward, next_state):
        s, s_ = torch.FloatTensor(state).to(device), torch.FloatTensor(next_state).to(device)
        # 前向传播
        v = self.network.forward(s)  # v(s)
        v_ = self.network.forward(s_)  # v(s')

        # 反向传播
        loss_q = self.loss_func(GAMMA * reward + v_, v)
        self.optimizer.zero_grad()
        loss_q.backward()
        self.optimizer.step()

        with torch.no_grad():
            td_error = GAMMA * reward + v_ - v

        return td_error


# Hyper Parameters
ENV_NAME = 'CartPole-v0'
EPISODE = 3000  # Episode limitation
STEP = 3000  # Step limitation in an episode
TEST = 10  # The number of experiment test every 100 episode


def main():
    # initialize OpenAI Gym env and dqn agent
    env = gym.make(ENV_NAME)
    actor = Actor(env)
    critic = Critic(env)

    for episode in range(EPISODE):
        # initialize task
        state = env.reset()
        # Train
        for step in range(STEP):
            action = actor.choose_action(state)  # SoftMax概率选择action
            next_state, reward, done, _ = env.step(action)
            td_error = critic.train_Q_network(state, reward, next_state)  # gradient = grad[r + gamma * V(s_) - V(s)]
            actor.learn(state, action, td_error)  # true_gradient = grad[logPi(s,a) * td_error]
            state = next_state
            if done:
                break

        # Test every 100 episodes
        if episode % 100 == 0:
            total_reward = 0
            for i in range(TEST):
                state = env.reset()
                for j in range(STEP):
                    env.render()
                    action = actor.choose_action(state)  # direct action for test
                    state, reward, done, _ = env.step(action)
                    total_reward += reward
                    if done:
                        break
            ave_reward = total_reward / TEST
            print('episode: ', episode, 'Evaluation Average Reward:', ave_reward)


if __name__ == '__main__':
    time_start = time.time()
    main()
    time_end = time.time()
    print('Total time is ', time_end - time_start, 's')

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

"""

https://blog.csdn.net/qq_34003876/article/details/107477426

"""

import torch

import torch.nn as nn

import torch.nn.functional as F

import gym

import time

import numpy as np

# Hyper Parameters for Actor

GAMMA = 0.95 # discount factor

LR = 0.01 # learning rate

# Use GPU

device = torch.device("cuda" if torch.cuda.is_available() else "cpu")

torch.backends.cudnn.enabled = False # 非确定性算法

class ActorNetwork(nn.Module):

def __init__(self, state_dim, action_dim):

super(ActorNetwork, self).__init__()

self.fc1 = nn.Linear(state_dim, 20)

self.fc2 = nn.Linear(20, action_dim)

def forward(self, x):

out = torch.relu(self.fc1(x))

out = self.fc2(out)

out = torch.softmax(out, dim=0)

return out

def initialize_weights(self):

for m in self.modules():

nn.init.normal_(m.weight.data, 0, 0.1)

nn.init.constant_(m.bias.data, 0.01)

class Actor(object):

# dqn Agent

def __init__(self, env): # 初始化

# 状态空间和动作空间的维度

self.state_dim = env.observation_space.shape[0]

self.action_dim = env.action_space.n

# init network parameters

self.network = ActorNetwork(state_dim=self.state_dim, action_dim=self.action_dim).to(device)

self.optimizer = torch.optim.Adam(self.network.parameters(), lr=LR)

# init some parameters

self.time_step = 0

def choose_action(self, observation):

observation = torch.FloatTensor(observation).to(device)

network_output = self.network.forward(observation).data.numpy()

action = np.random.choice(range(network_output.shape[0]), p=network_output)

return action

def learn(self, state, action, td_error):

self.time_step += 1

# Step 1: 前向传播

softmax_input = self.network.forward(torch.FloatTensor(state).to(device)).unsqueeze(0)

action = torch.LongTensor([action]).to(device)

neg_log_prob = F.cross_entropy(input=softmax_input, target=action)

# Step 2: 反向传播

# 这里需要最大化当前策略的价值，因此需要最大化neg_log_prob * tf_error,即最小化-neg_log_prob * td_error

loss_a = neg_log_prob * td_error

self.optimizer.zero_grad()

loss_a.backward()

self.optimizer.step()

# Hyper Parameters for Critic

EPSILON = 0.01 # final value of epsilon

REPLAY_SIZE = 10000 # experience replay buffer size

BATCH_SIZE = 32 # size of minibatch

REPLACE_TARGET_FREQ = 10 # frequency to update target Q network

class QNetwork(nn.Module):

def __init__(self, state_dim, action_dim):

super(QNetwork, self).__init__()

self.fc1 = nn.Linear(state_dim, 20)

self.fc2 = nn.Linear(20, 1) # 这个地方和之前略有区别，输出不是动作维度，而是一维

def forward(self, x):

out = F.relu(self.fc1(x))

out = self.fc2(out)

return out

def initialize_weights(self):

for m in self.modules():

nn.init.normal_(m.weight.data, 0, 0.1)

nn.init.constant_(m.bias.data, 0.01)

class Critic(object):

def __init__(self, env):

# 状态空间和动作空间的维度

self.state_dim = env.observation_space.shape[0]

self.action_dim = env.action_space.n

# init network parameters

self.network = QNetwork(state_dim=self.state_dim, action_dim=self.action_dim).to(device)

self.optimizer = torch.optim.Adam(self.network.parameters(), lr=LR)

self.loss_func = nn.MSELoss()

# init some parameters

self.time_step = 0

self.epsilon = EPSILON # epsilon值是随机不断变小的

def train_Q_network(self, state, reward, next_state):

s, s_ = torch.FloatTensor(state).to(device), torch.FloatTensor(next_state).to(device)

# 前向传播

v = self.network.forward(s) # v(s)

v_ = self.network.forward(s_) # v(s')

# 反向传播

loss_q = self.loss_func(GAMMA * reward + v_, v)

self.optimizer.zero_grad()

loss_q.backward()

self.optimizer.step()

with torch.no_grad():

td_error = GAMMA * reward + v_ - v

return td_error

# Hyper Parameters

ENV_NAME = 'CartPole-v0'

EPISODE = 3000 # Episode limitation

STEP = 3000 # Step limitation in an episode

TEST = 10 # The number of experiment test every 100 episode

def main():

# initialize OpenAI Gym env and dqn agent

env = gym.make(ENV_NAME)

actor = Actor(env)

critic = Critic(env)

for episode in range(EPISODE):

# initialize task

state = env.reset()

# Train

for step in range(STEP):

action = actor.choose_action(state) # SoftMax概率选择action

next_state, reward, done, _ = env.step(action)

td_error = critic.train_Q_network(state, reward, next_state) # gradient = grad[r + gamma * V(s_) - V(s)]

actor.learn(state, action, td_error) # true_gradient = grad[logPi(s,a) * td_error]

state = next_state

if done:

break

# Test every 100 episodes

if episode % 100 == 0:

total_reward = 0

for i in range(TEST):

state = env.reset()

for j in range(STEP):

env.render()

action = actor.choose_action(state) # direct action for test

state, reward, done, _ = env.step(action)

total_reward += reward

if done:

break

ave_reward = total_reward / TEST

print('episode: ', episode, 'Evaluation Average Reward:', ave_reward)

if __name__ == '__main__':

time_start = time.time()

main()

time_end = time.time()

print('Total time is ', time_end - time_start, 's')

Github 参考代码

"""
https://github.com/pytorch/examples/blob/main/reinforcement_learning/actor_critic.py
"""
import argparse
import gym
import numpy as np
from itertools import count
from collections import namedtuple
import torch
import torch.nn as nn
import torch.nn.functional as F
import torch.optim as optim
from torch.distributions import Categorical

# 设置参数
parser = argparse.ArgumentParser(description='PyTorch actor-critic example')
parser.add_argument('--gamma', type=float, default=0.99, metavar='G',
                    help='discount factor (default: 0.99)')
parser.add_argument('--seed', type=int, default=543, metavar='N',
                    help='random seed (default: 543)')
parser.add_argument('--render', action='store_true',
                    help='render the environment')
parser.add_argument('--log-interval', type=int, default=10, metavar='N',
                    help='interval between training status logs (default: 10)')
args = parser.parse_args()

# 初始化 gym
env = gym.make('CartPole-v1')
env.seed(args.seed)
torch.manual_seed(args.seed)

# ln(action probability), critic value
SavedAction = namedtuple('SavedAction', ['log_prob', 'value'])


# Actor 和 Critic 共用网络
class Policy(nn.Module):
    def __init__(self):
        super(Policy, self).__init__()
        # 共用输入层
        self.affine1 = nn.Linear(4, 128)
        # Actor 层
        self.action_head = nn.Linear(128, 2)
        # Critic 层
        self.value_head = nn.Linear(128, 1)
        # 一次模拟下保存的所有 action and reward
        self.saved_actions = []
        self.rewards = []

    # Network forward
    def forward(self, x):
        x = F.relu(self.affine1(x))
        # Actor 层使用 softmax 让概率0~1分布，提高准确率。输出每个动作的概率
        action_prob = F.softmax(self.action_head(x), dim=-1)
        # Critic 层输出得分
        state_values = self.value_head(x)
        # 输出 Actor and Critic 网络
        return action_prob, state_values


# 初始化网络相关设置
model = Policy()
optimizer = optim.Adam(model.parameters(), lr=3e-2)
eps = np.finfo(np.float32).eps.item()


# 使用 Categorical 包对 action 进行选择，并保存 ln(action probability) 至网络
def select_action(state):
    state = torch.from_numpy(state).float()
    probs, state_value = model(state)
    # 创建 categorical distribution
    m = Categorical(probs)
    # 提取 sample
    action = m.sample()
    # 保存数据至 action buffer
    model.saved_actions.append(SavedAction(m.log_prob(action), state_value))
    # 输出 action (left or right)
    return action.item()


# 当完成一个循环后训练网络，详情可参考以下网站
"""
https://blog.csdn.net/qq_30615903/article/details/80774384
"""
def finish_episode():
    R = 0
    saved_actions = model.saved_actions
    # Actor loss : - \frac { 1 } { n } \sum _ { i = 1 } ^ { n } A _ { \pi } ( s , a ) \log \pi ( s , a )
    policy_losses = []
    # Critic loss : \frac { 1 } { n } \sum _ { i = 1 } ^ { n } e _ { i } ^ { 2 }
    value_losses = []
    # 策略动作值函数 ： Q_{\pi}(s,a) = R_{s}^{a}+\gamma V_{\pi}(s\prime)
    returns = []

    # calculate the true value using rewards returned from the environment
    for r in model.rewards[::-1]:
        # calculate the discounted value
        R = r + args.gamma * R
        returns.insert(0, R)

    returns = torch.tensor(returns)
    returns = (returns - returns.mean()) / (returns.std() + eps)

    for (log_prob, value), R in zip(saved_actions, returns):
        # A _ { \pi } ( s , a ) = Q _ { \pi } ( s , a ) - V _ { \pi } ( s ) = r + \gamma V _ { \pi } ( s \prime ) - V _ { \pi } ( s )
        advantage = R - value.item()
        # calculate actor (policy) loss
        policy_losses.append(-log_prob * advantage)
        # calculate critic (value) loss using L1 smooth loss
        value_losses.append(F.smooth_l1_loss(value, torch.tensor([R])))
    # sum up all the values of policy_losses and value_losses
    loss = (torch.stack(policy_losses).sum() + torch.stack(value_losses).sum()) / len(model.rewards)

    # 训练老三步
    optimizer.zero_grad()
    loss.backward()
    optimizer.step()

    # reset rewards and action buffer
    del model.rewards[:]
    del model.saved_actions[:]


def main():
    running_reward = 10

    # 无限循环
    for i_episode in count(1):

        # 重置 env
        state = env.reset()
        ep_reward = 0

        # 设置 9999 step ， 防止无限循环
        for t in range(1, 10000):

            # select action from policy
            action = select_action(state)

            # take the action
            state, reward, done, _ = env.step(action)

            if args.render:
                env.render()

            model.rewards.append(reward)
            ep_reward += reward
            if done:
                break

        # 更新总体 reward
        running_reward = 0.05 * ep_reward + (1 - 0.05) * running_reward
        # 训练网络
        finish_episode()
        # 打印结果
        if i_episode % args.log_interval == 0:
            print('Episode {}\tLast reward: {:.2f}\tAverage reward: {:.2f}'.format(
                i_episode, ep_reward, running_reward))

        # 训练结束退出循环
        if running_reward > env.spec.reward_threshold:
            print("Solved! Running reward is now {} and "
                  "the last episode runs to {} time steps!".format(running_reward, t))
            break


if __name__ == '__main__':
    main()

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

"""

https://github.com/pytorch/examples/blob/main/reinforcement_learning/actor_critic.py

"""

import argparse

import gym

import numpy as np

from itertools import count

from collections import namedtuple

import torch

import torch.nn as nn

import torch.nn.functional as F

import torch.optim as optim

from torch.distributions import Categorical

# 设置参数

parser = argparse.ArgumentParser(description='PyTorch actor-critic example')

parser.add_argument('--gamma', type=float, default=0.99, metavar='G',

help='discount factor (default: 0.99)')

parser.add_argument('--seed', type=int, default=543, metavar='N',

help='random seed (default: 543)')

parser.add_argument('--render', action='store_true',

help='render the environment')

parser.add_argument('--log-interval', type=int, default=10, metavar='N',

help='interval between training status logs (default: 10)')

args = parser.parse_args()

# 初始化 gym

env = gym.make('CartPole-v1')

env.seed(args.seed)

torch.manual_seed(args.seed)

# ln(action probability), critic value

SavedAction = namedtuple('SavedAction', ['log_prob', 'value'])

# Actor 和 Critic 共用网络

class Policy(nn.Module):

def __init__(self):

super(Policy, self).__init__()

# 共用输入层

self.affine1 = nn.Linear(4, 128)

# Actor 层

self.action_head = nn.Linear(128, 2)

# Critic 层

self.value_head = nn.Linear(128, 1)

# 一次模拟下保存的所有 action and reward

self.saved_actions = []

self.rewards = []

# Network forward

def forward(self, x):

x = F.relu(self.affine1(x))

# Actor 层使用 softmax 让概率0~1分布，提高准确率。输出每个动作的概率

action_prob = F.softmax(self.action_head(x), dim=-1)

# Critic 层输出得分

state_values = self.value_head(x)

# 输出 Actor and Critic 网络

return action_prob, state_values

# 初始化网络相关设置

model = Policy()

optimizer = optim.Adam(model.parameters(), lr=3e-2)

eps = np.finfo(np.float32).eps.item()

# 使用 Categorical 包对 action 进行选择，并保存 ln(action probability) 至网络

def select_action(state):

state = torch.from_numpy(state).float()

probs, state_value = model(state)

# 创建 categorical distribution

m = Categorical(probs)

# 提取 sample

action = m.sample()

# 保存数据至 action buffer

model.saved_actions.append(SavedAction(m.log_prob(action), state_value))

# 输出 action (left or right)

return action.item()

# 当完成一个循环后训练网络，详情可参考以下网站

"""

https://blog.csdn.net/qq_30615903/article/details/80774384

"""

def finish_episode():

R = 0

saved_actions = model.saved_actions

# Actor loss : - \frac { 1 } { n } \sum _ { i = 1 } ^ { n } A _ { \pi } ( s , a ) \log \pi ( s , a )

policy_losses = []

# Critic loss : \frac { 1 } { n } \sum _ { i = 1 } ^ { n } e _ { i } ^ { 2 }

value_losses = []

# 策略动作值函数： Q_{\pi}(s,a) = R_{s}^{a}+\gamma V_{\pi}(s\prime)

returns = []

# calculate the true value using rewards returned from the environment

for r in model.rewards[::-1]:

# calculate the discounted value

R = r + args.gamma * R

returns.insert(0, R)

returns = torch.tensor(returns)

returns = (returns - returns.mean()) / (returns.std() + eps)

for (log_prob, value), R in zip(saved_actions, returns):

# A _ { \pi } ( s , a ) = Q _ { \pi } ( s , a ) - V _ { \pi } ( s ) = r + \gamma V _ { \pi } ( s \prime ) - V _ { \pi } ( s )

advantage = R - value.item()

# calculate actor (policy) loss

policy_losses.append(-log_prob * advantage)

# calculate critic (value) loss using L1 smooth loss

value_losses.append(F.smooth_l1_loss(value, torch.tensor([R])))

# sum up all the values of policy_losses and value_losses

loss = (torch.stack(policy_losses).sum() + torch.stack(value_losses).sum()) / len(model.rewards)

# 训练老三步

optimizer.zero_grad()

loss.backward()

optimizer.step()

# reset rewards and action buffer

del model.rewards[:]

del model.saved_actions[:]

def main():

running_reward = 10

# 无限循环

for i_episode in count(1):

# 重置 env

state = env.reset()

ep_reward = 0

# 设置 9999 step ，防止无限循环

for t in range(1, 10000):

# select action from policy

action = select_action(state)

# take the action

state, reward, done, _ = env.step(action)

if args.render:

env.render()

model.rewards.append(reward)

ep_reward += reward

if done:

break

# 更新总体 reward

running_reward = 0.05 * ep_reward + (1 - 0.05) * running_reward

# 训练网络

finish_episode()

# 打印结果

if i_episode % args.log_interval == 0:

print('Episode {}\tLast reward: {:.2f}\tAverage reward: {:.2f}'.format(

i_episode, ep_reward, running_reward))

# 训练结束退出循环

if running_reward > env.spec.reward_threshold:

print("Solved! Running reward is now {} and "

"the last episode runs to {} time steps!".format(running_reward, t))

break

if __name__ == '__main__':

main()

A2C A3C

网上多数认为 DDPG TD3 PPO 优于 A3C 所以我没怎么看此两种方法。简单来说就是通过多线程同时计算多个网络，返回组合来更新策略和值函数来更新网络。

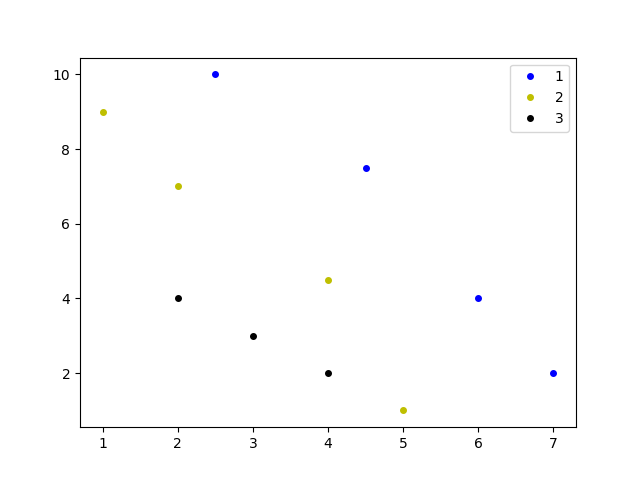

关于GA/NSGA优化神经网络

查了网上一些论文和代码，自己写了三个版本的GA-BP优化代码。

说明：主要便于方便代入自己的数据所以写了如下代码。自己用的时候主要可以修改Net中的网络，Train中的load_data变成自己要读的文件，选用合适的损失函数等等。geatpy为国内大佬写的遗传算法库，这里假设读者已经会用。关于GA和NSGA的区别只在于代码中运用模板的区别。

代码都有注释，可以试着读一读。代码gpu支持暂没测试与优化。

可供测试data文件。测试文件说明：最后一列为label，除最后一列外为data。

三个版本对比，对上述测试文件对R^2 >= 0.96为指标，在我的破电脑上运行时间v1.0≈1min，v2.0约等于45s，v3.0≈20s，我没有测试过别的例子的速度，对于v3.0不能保证每个例子都能用，有一定缺陷，不同问题可以选用不同的版本进行使用。

利用 GA 求神经网络最优的learning rate和隐藏层的神经元个数

GA-NET v1.0

import torch.nn as nn
import torch
import geatpy as ea
import numpy as np
import os
from sklearn.model_selection import train_test_split

input_dimension = 7
output_dimension = 1


# 自定义网络
class Net(nn.Module):
    def __init__(self, neurons_num):
        super(Net, self).__init__()
        self.hidden0 = torch.nn.Linear(input_dimension, neurons_num)
        self.hidden1 = torch.nn.Linear(neurons_num, neurons_num)
        self.hidden2 = torch.nn.Linear(neurons_num, neurons_num)
        self.hidden3 = torch.nn.Linear(neurons_num, output_dimension)

    def forward(self, x):
        x = torch.relu(self.hidden0(x))
        x = torch.relu(self.hidden1(x))
        x = torch.relu(self.hidden2(x))
        x = self.hidden3(x)
        return x


# r^2 函数
def r2(y_test, y):
    return 1 - ((y_test - y) ** 2).sum() / ((y.mean() - y) ** 2).sum()


# 神经网络训练
class Train:
    train_x, train_y, test_x, test_y, model, lr, neurons_num, x, y, optimizer = None, None, None, None, None, None, None, None, None, None

    def __init__(self):
        self.use_gpu = torch.cuda.is_available()
        # 选用合适的 loss function
        # self.loss_fn = torch.nn.CrossEntropyLoss()
        self.loss_fn = torch.nn.MSELoss()
        self.load_data()

    # 自定义读入数据
    def load_data(self):
        with open('data.csv') as f:
            df = np.loadtxt(f, delimiter=",", skiprows=0)
            self.x = df[:, :-1]
            self.y = df[:, -1:]
        f.close()

    # 重新创建不一样的 train and test data set
    def reload(self, learing_rate, neurons_num):
        train_x, test_x, train_y, test_y = train_test_split(self.x, self.y, test_size=0.3, random_state=42)
        self.train_x = torch.from_numpy(train_x).float()
        self.train_y = torch.from_numpy(train_y).float()
        self.test_x = torch.from_numpy(test_x).float()
        self.test_y = torch.from_numpy(test_y).float()
        self.model = Net(neurons_num)
        if self.use_gpu:
            self.train_x, self.train_y, self.test_x, self.test_y = self.train_x.cuda(), self.train_y.cuda(), self.test_x.cuda(), self.test_y.cuda()
            self.model = self.model.cuda()
            self.loss_fn = self.loss_fn.cuda()
        self.lr = learing_rate
        self.optimizer = torch.optim.Adam(self.model.parameters(), lr=self.lr)

    # 训练神经网络，返回 r^2 值
    def train(self, n=10):
        for epoch in range(n):
            model_output = self.model(self.train_x)
            loss = self.loss_fn(model_output, self.train_y)
            self.optimizer.zero_grad()
            loss.backward()
            self.optimizer.step()
        model_output = self.model(self.test_x)
        return float(r2(model_output.data, self.test_y))


# 自定义 GA，对 learning rate and neurons num 经行改变
class My_nsga(ea.Problem):
    def __init__(self, epoch):
        if "result" not in os.listdir():
            os.makedirs("./result")
        name = 'GA-NET'
        M = 1
        maxormins = [-1] * M
        Dim = 2
        varTypes = [1] * Dim
        lb = [10, 10]
        ub = [5000, 100]
        lbin = [1] * Dim
        ubin = [1] * Dim
        self.epoch = epoch
        self.train = Train()

        ea.Problem.__init__(self, name, M, maxormins, Dim, varTypes, lb, ub, lbin, ubin)

    # 目标函数即神经网络返回值
    def evalVars(self, Vars):
        ans = np.zeros(len(Vars), dtype=float).reshape(len(Vars), 1)
        for i in range(len(Vars)):
            self.train.reload(Vars[i][0] / 100000, Vars[i][1])
            # 括号内参数表示单个神经网络训练次数
            data = self.train.train(self.epoch)
            print("learning rate = {}, neurons num = {}, R^2 = {}".format(Vars[i][0] / 10000, Vars[i][1], data))
            torch.save(self.train.model, "./result/lr={}num={}epoch={}r2={}.pt".format(Vars[i][0] / 100000, Vars[i][1], self.epoch, round(data, 3)))
            # 达到一定准确率停止
            if data >= 1:
                torch.save(self.train.model, "lr{}=num={}epoch={}r2={}.pt".format(Vars[i][0] / 100000, Vars[i][1], self.epoch, round(data, 3)))
                exit("Find!")
            ans[i][0] = data
        return ans


# 运行 GA
class Run_nsga:
    def __init__(self, epoch=10, ndind=10, maxgen=10):
        problem = My_nsga(epoch)
        myAlgorithm = ea.soea_EGA_templet(problem, ea.Population(Encoding='RI', NIND=ndind), MAXGEN=maxgen, logTras=0)
        myAlgorithm.drawing = 0
        res = ea.optimize(myAlgorithm, seed=1, verbose=False, drawing=0, outputMsg=True, drawLog=False, saveFlag=False, dirName='result')
        print(res)
        print(res['Vars'][0])


if __name__ == "__main__":
    # 括号内参数表示单个神经网络训练次数，种群数，GA迭代数
    Run_nsga(10000, 10, 30)

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

import torch.nn as nn

import torch

import geatpy as ea

import numpy as np

import os

from sklearn.model_selection import train_test_split

input_dimension = 7

output_dimension = 1

# 自定义网络

class Net(nn.Module):

def __init__(self, neurons_num):

super(Net, self).__init__()

self.hidden0 = torch.nn.Linear(input_dimension, neurons_num)

self.hidden1 = torch.nn.Linear(neurons_num, neurons_num)

self.hidden2 = torch.nn.Linear(neurons_num, neurons_num)

self.hidden3 = torch.nn.Linear(neurons_num, output_dimension)

def forward(self, x):

x = torch.relu(self.hidden0(x))

x = torch.relu(self.hidden1(x))

x = torch.relu(self.hidden2(x))

x = self.hidden3(x)

return x

# r^2 函数

def r2(y_test, y):

return 1 - ((y_test - y) ** 2).sum() / ((y.mean() - y) ** 2).sum()

# 神经网络训练

class Train:

train_x, train_y, test_x, test_y, model, lr, neurons_num, x, y, optimizer = None, None, None, None, None, None, None, None, None, None

def __init__(self):

self.use_gpu = torch.cuda.is_available()

# 选用合适的 loss function

# self.loss_fn = torch.nn.CrossEntropyLoss()

self.loss_fn = torch.nn.MSELoss()

self.load_data()

# 自定义读入数据

def load_data(self):

with open('data.csv') as f:

df = np.loadtxt(f, delimiter=",", skiprows=0)

self.x = df[:, :-1]

self.y = df[:, -1:]

f.close()

# 重新创建不一样的 train and test data set

def reload(self, learing_rate, neurons_num):

train_x, test_x, train_y, test_y = train_test_split(self.x, self.y, test_size=0.3, random_state=42)

self.train_x = torch.from_numpy(train_x).float()

self.train_y = torch.from_numpy(train_y).float()

self.test_x = torch.from_numpy(test_x).float()

self.test_y = torch.from_numpy(test_y).float()

self.model = Net(neurons_num)

if self.use_gpu:

self.train_x, self.train_y, self.test_x, self.test_y = self.train_x.cuda(), self.train_y.cuda(), self.test_x.cuda(), self.test_y.cuda()

self.model = self.model.cuda()

self.loss_fn = self.loss_fn.cuda()

self.lr = learing_rate

self.optimizer = torch.optim.Adam(self.model.parameters(), lr=self.lr)

# 训练神经网络，返回 r^2 值

def train(self, n=10):

for epoch in range(n):

model_output = self.model(self.train_x)

loss = self.loss_fn(model_output, self.train_y)

self.optimizer.zero_grad()

loss.backward()

self.optimizer.step()

model_output = self.model(self.test_x)

return float(r2(model_output.data, self.test_y))

# 自定义 GA，对 learning rate and neurons num 经行改变

class My_nsga(ea.Problem):

def __init__(self, epoch):

if "result" not in os.listdir():

os.makedirs("./result")

name = 'GA-NET'

M = 1

maxormins = [-1] * M

Dim = 2

varTypes = [1] * Dim

lb = [10, 10]

ub = [5000, 100]

lbin = [1] * Dim

ubin = [1] * Dim

self.epoch = epoch

self.train = Train()

ea.Problem.__init__(self, name, M, maxormins, Dim, varTypes, lb, ub, lbin, ubin)

# 目标函数即神经网络返回值

def evalVars(self, Vars):

ans = np.zeros(len(Vars), dtype=float).reshape(len(Vars), 1)

for i in range(len(Vars)):

self.train.reload(Vars[i][0] / 100000, Vars[i][1])

# 括号内参数表示单个神经网络训练次数

data = self.train.train(self.epoch)

print("learning rate = {}, neurons num = {}, R^2 = {}".format(Vars[i][0] / 10000, Vars[i][1], data))

torch.save(self.train.model, "./result/lr={}num={}epoch={}r2={}.pt".format(Vars[i][0] / 100000, Vars[i][1], self.epoch, round(data, 3)))

# 达到一定准确率停止

if data >= 1:

torch.save(self.train.model, "lr{}=num={}epoch={}r2={}.pt".format(Vars[i][0] / 100000, Vars[i][1], self.epoch, round(data, 3)))

exit("Find!")

ans[i][0] = data

return ans

# 运行 GA

class Run_nsga:

def __init__(self, epoch=10, ndind=10, maxgen=10):

problem = My_nsga(epoch)

myAlgorithm = ea.soea_EGA_templet(problem, ea.Population(Encoding='RI', NIND=ndind), MAXGEN=maxgen, logTras=0)

myAlgorithm.drawing = 0

res = ea.optimize(myAlgorithm, seed=1, verbose=False, drawing=0, outputMsg=True, drawLog=False, saveFlag=False, dirName='result')

print(res)

print(res['Vars'][0])

if __name__ == "__main__":

# 括号内参数表示单个神经网络训练次数，种群数，GA迭代数

Run_nsga(10000, 10, 30)

对于图片的识别，进行了相关优化

GA-NET v2.0

import torch.nn as nn
import torch
import geatpy as ea
import numpy as np
import os
from sklearn.model_selection import train_test_split

input_dimension = 7
output_dimension = 1
batch_size = 500


# 自定义网络
class Net(nn.Module):
    def __init__(self, neurons_num):
        super(Net, self).__init__()
        self.hidden0 = torch.nn.Linear(input_dimension, neurons_num)
        self.hidden1 = torch.nn.Linear(neurons_num, neurons_num)
        self.hidden2 = torch.nn.Linear(neurons_num, neurons_num)
        self.hidden3 = torch.nn.Linear(neurons_num, output_dimension)

    def forward(self, x):
        x = torch.relu(self.hidden0(x))
        x = torch.relu(self.hidden1(x))
        x = torch.relu(self.hidden2(x))
        x = self.hidden3(x)
        return x


# r^2 函数
def r2(y_test, y):
    return 1 - ((y_test - y) ** 2).sum() / ((y.mean() - y) ** 2).sum()


# Data 类，以便带入自己的data
class Data(torch.utils.data.Dataset):
    def __init__(self, data, label):
        # 可选择归一化操作
        # data = (data - data.min(axis=0)) / (data.max(axis=0) - data.min(axis=0))
        # label = (label - label.min(axis=0)) / (label.max(axis=0) - label.min(axis=0))
        self.x = data
        self.y = label
        self.len = len(self.y)

    def __len__(self):
        return self.len

    def __getitem__(self, item):
        return self.x[item], self.y[item]


# 神经网络训练
class Train:
    trainsetloader, test_x, test_y, model, lr, neurons_num, optimizer, x, y = None, None, None, None, None, None, None, None, None

    def __init__(self):
        self.use_gpu = torch.cuda.is_available()
        # 选用合适的 loss function
        # self.loss_fn = torch.nn.CrossEntropyLoss()
        self.loss_fn = torch.nn.MSELoss()
        self.load_data()

    # 自定义读入数据
    def load_data(self):
        with open('data.csv') as f:
            df = np.loadtxt(f, delimiter=",", skiprows=0)
            self.x = df[:, :-1]
            self.y = df[:, -1:]
        f.close()
        # 创建 train and test
        self.re_data_split()

    # 重新创建不一样的 train and test data set，便于带入到 reload 函数中
    def re_data_split(self):
        train_x, test_x, train_y, test_y = train_test_split(self.x, self.y, test_size=0.3, random_state=42)
        train_x = torch.from_numpy(train_x).float()
        train_y = torch.from_numpy(train_y).float()
        # test 数据
        self.test_x = torch.from_numpy(test_x).float()
        self.test_y = torch.from_numpy(test_y).float()
        trainset = Data(train_x, train_y)
        # train 池化
        self.trainsetloader = torch.utils.data.DataLoader(trainset, batch_size=batch_size, shuffle=False)

    # 重新载入 learning rate 和 neurons num
    def reload(self, learning_rate, neurons_num):
        # 可选择是否重新分类 test and train
        # self.re_data_split()
        self.model = Net(neurons_num)
        if self.use_gpu:
            self.model = self.model.cuda()
            self.loss_fn = self.loss_fn.cuda()
        self.lr = learning_rate
        self.optimizer = torch.optim.Adam(self.model.parameters(), lr=self.lr)

    # 训练神经网络，返回 r^2 值
    def train(self, n=10) -> float:
        for epoch in range(n):
            for i, (batch_x, batch_y) in enumerate(self.trainsetloader):
                model_output = self.model(batch_x)
                loss = self.loss_fn(model_output, batch_y)
                self.optimizer.zero_grad()
                loss.backward()
                self.optimizer.step()
            model_output = self.model(self.test_x)
            print(float(r2(model_output.data, self.test_y)))
        model_output = self.model(self.test_x)
        return float(r2(model_output.data, self.test_y))


# 自定义 GA，对 learning rate and neurons num 经行改变
class My_nsga(ea.Problem):
    def __init__(self, epoch):
        if "result" not in os.listdir():
            os.makedirs("./result")
        name = 'GA-NET'
        M = 1
        maxormins = [-1] * M
        Dim = 2
        varTypes = [1] * Dim
        lb = [10, 10]
        ub = [500, 100]
        lbin = [1] * Dim
        ubin = [1] * Dim
        self.count = 1
        self.epoch = epoch
        self.train = Train()

        ea.Problem.__init__(self, name, M, maxormins, Dim, varTypes, lb, ub, lbin, ubin)

    # 目标函数即神经网络返回值
    def evalVars(self, Vars):
        ans = np.zeros(len(Vars), dtype=float).reshape(len(Vars), 1)
        for i in range(len(Vars)):
            self.train.reload(Vars[i][0] / 100000, Vars[i][1])
            # 括号内参数表示单个神经网络训练次数
            data = self.train.train(self.epoch)
            print("learning rate = {}, neurons num = {}, R^2 = {}".format(Vars[i][0] / 10000, Vars[i][1], data))
            torch.save(self.train.model, "./result/lr={}num={}epoch={}r2={}.pt".format(Vars[i][0] / 100000, Vars[i][1], self.epoch, round(data, 3)))
            # 达到一定准确率停止
            if data >= 1:
                torch.save(self.train.model, "lr{}=num={}epoch={}r2={}.pt".format(Vars[i][0] / 100000, Vars[i][1], self.epoch, round(data, 3)))
                exit("Find!")
            ans[i][0] = data
        return ans


# 运行 GA
class Run_nsga:
    def __init__(self, epoch=10, ndind=10, maxgen=10):
        problem = My_nsga(epoch)
        myAlgorithm = ea.soea_EGA_templet(problem, ea.Population(Encoding='RI', NIND=ndind), MAXGEN=maxgen, logTras=0)
        myAlgorithm.drawing = 0
        res = ea.optimize(myAlgorithm, seed=1, verbose=False, drawing=0, outputMsg=True, drawLog=False, saveFlag=False, dirName='result')
        print(res)
        print(res['Vars'][0])


if __name__ == "__main__":
    # 括号内参数表示单个神经网络训练次数，种群数，GA迭代数
    Run_nsga(10000, 10, 30)

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

import torch.nn as nn

import torch

import geatpy as ea

import numpy as np

import os

from sklearn.model_selection import train_test_split

input_dimension = 7

output_dimension = 1

batch_size = 500

# 自定义网络

class Net(nn.Module):

def __init__(self, neurons_num):

super(Net, self).__init__()

self.hidden0 = torch.nn.Linear(input_dimension, neurons_num)

self.hidden1 = torch.nn.Linear(neurons_num, neurons_num)

self.hidden2 = torch.nn.Linear(neurons_num, neurons_num)

self.hidden3 = torch.nn.Linear(neurons_num, output_dimension)

def forward(self, x):

x = torch.relu(self.hidden0(x))

x = torch.relu(self.hidden1(x))

x = torch.relu(self.hidden2(x))

x = self.hidden3(x)

return x

# r^2 函数

def r2(y_test, y):

return 1 - ((y_test - y) ** 2).sum() / ((y.mean() - y) ** 2).sum()

# Data 类，以便带入自己的data

class Data(torch.utils.data.Dataset):

def __init__(self, data, label):

# 可选择归一化操作

# data = (data - data.min(axis=0)) / (data.max(axis=0) - data.min(axis=0))

# label = (label - label.min(axis=0)) / (label.max(axis=0) - label.min(axis=0))

self.x = data

self.y = label

self.len = len(self.y)

def __len__(self):

return self.len

def __getitem__(self, item):

return self.x[item], self.y[item]

# 神经网络训练

class Train:

trainsetloader, test_x, test_y, model, lr, neurons_num, optimizer, x, y = None, None, None, None, None, None, None, None, None

def __init__(self):

self.use_gpu = torch.cuda.is_available()

# 选用合适的 loss function

# self.loss_fn = torch.nn.CrossEntropyLoss()

self.loss_fn = torch.nn.MSELoss()

self.load_data()

# 自定义读入数据

def load_data(self):

with open('data.csv') as f:

df = np.loadtxt(f, delimiter=",", skiprows=0)

self.x = df[:, :-1]

self.y = df[:, -1:]

f.close()

# 创建 train and test

self.re_data_split()

# 重新创建不一样的 train and test data set，便于带入到 reload 函数中

def re_data_split(self):

train_x, test_x, train_y, test_y = train_test_split(self.x, self.y, test_size=0.3, random_state=42)

train_x = torch.from_numpy(train_x).float()

train_y = torch.from_numpy(train_y).float()

# test 数据

self.test_x = torch.from_numpy(test_x).float()

self.test_y = torch.from_numpy(test_y).float()

trainset = Data(train_x, train_y)

# train 池化

self.trainsetloader = torch.utils.data.DataLoader(trainset, batch_size=batch_size, shuffle=False)

# 重新载入 learning rate 和 neurons num

def reload(self, learning_rate, neurons_num):

# 可选择是否重新分类 test and train

# self.re_data_split()

self.model = Net(neurons_num)

if self.use_gpu:

self.model = self.model.cuda()

self.loss_fn = self.loss_fn.cuda()

self.lr = learning_rate

self.optimizer = torch.optim.Adam(self.model.parameters(), lr=self.lr)

# 训练神经网络，返回 r^2 值

def train(self, n=10) -> float:

for epoch in range(n):

for i, (batch_x, batch_y) in enumerate(self.trainsetloader):

model_output = self.model(batch_x)

loss = self.loss_fn(model_output, batch_y)

self.optimizer.zero_grad()

loss.backward()

self.optimizer.step()

model_output = self.model(self.test_x)

print(float(r2(model_output.data, self.test_y)))

model_output = self.model(self.test_x)

return float(r2(model_output.data, self.test_y))

# 自定义 GA，对 learning rate and neurons num 经行改变

class My_nsga(ea.Problem):

def __init__(self, epoch):

if "result" not in os.listdir():

os.makedirs("./result")

name = 'GA-NET'

M = 1

maxormins = [-1] * M

Dim = 2

varTypes = [1] * Dim

lb = [10, 10]

ub = [500, 100]

lbin = [1] * Dim

ubin = [1] * Dim

self.count = 1

self.epoch = epoch

self.train = Train()

ea.Problem.__init__(self, name, M, maxormins, Dim, varTypes, lb, ub, lbin, ubin)

# 目标函数即神经网络返回值

def evalVars(self, Vars):

ans = np.zeros(len(Vars), dtype=float).reshape(len(Vars), 1)

for i in range(len(Vars)):

self.train.reload(Vars[i][0] / 100000, Vars[i][1])

# 括号内参数表示单个神经网络训练次数

data = self.train.train(self.epoch)

print("learning rate = {}, neurons num = {}, R^2 = {}".format(Vars[i][0] / 10000, Vars[i][1], data))

torch.save(self.train.model, "./result/lr={}num={}epoch={}r2={}.pt".format(Vars[i][0] / 100000, Vars[i][1], self.epoch, round(data, 3)))

# 达到一定准确率停止

if data >= 1:

torch.save(self.train.model, "lr{}=num={}epoch={}r2={}.pt".format(Vars[i][0] / 100000, Vars[i][1], self.epoch, round(data, 3)))

exit("Find!")

ans[i][0] = data

return ans

# 运行 GA

class Run_nsga:

def __init__(self, epoch=10, ndind=10, maxgen=10):

problem = My_nsga(epoch)

myAlgorithm = ea.soea_EGA_templet(problem, ea.Population(Encoding='RI', NIND=ndind), MAXGEN=maxgen, logTras=0)

myAlgorithm.drawing = 0

res = ea.optimize(myAlgorithm, seed=1, verbose=False, drawing=0, outputMsg=True, drawLog=False, saveFlag=False, dirName='result')

print(res)

print(res['Vars'][0])

if __name__ == "__main__":

# 括号内参数表示单个神经网络训练次数，种群数，GA迭代数

Run_nsga(10000, 10, 30)

在神经网络中也加入GA来加快神经网络训练速度

GA-NET v3.0

import random
import torch.nn as nn
import torch
import geatpy as ea
import numpy as np
import os
import copy
from sklearn.model_selection import train_test_split
from torch.distributions import Categorical

input_dimension = 7
output_dimension = 1
# 该参数在数据较少的输入时也相应变少，最好使得 data_size / batch_size = NetGA_pop_size
batch_size = 100


# 自定义网络
class Net(torch.nn.Module):
    def __init__(self, neurons_num, lr):
        super(Net, self).__init__()
        self.layers = torch.nn.Sequential(
            torch.nn.Linear(input_dimension, neurons_num),
            torch.nn.ReLU(),
            torch.nn.Linear(neurons_num, neurons_num),
            torch.nn.ReLU(),
            torch.nn.Linear(neurons_num, neurons_num),
            torch.nn.ReLU(),
            torch.nn.Linear(neurons_num, output_dimension)
        )
        self.optimizer = torch.optim.Adam(self.parameters(), lr=lr)

    def forward(self, x):
        return self.layers(x)

    def set_layer(self, layers):
        self.layers = layers


# r^2 函数
def r2(y_test, y):
    return 1 - ((y_test - y) ** 2).sum() / ((y.mean() - y) ** 2).sum()


# Data 类，以便带入自己的data
class Data(torch.utils.data.Dataset):
    def __init__(self, data, label):
        self.x = data
        self.y = label
        self.len = len(self.y)

    def __len__(self):
        return self.len

    def __getitem__(self, item):
        return self.x[item], self.y[item]


# GA 优化的神经网络训练
class NetTrainGA:
    def __init__(self, _pop_size=10, _r_mutation=0.1, _p_mutation=0.1, _elite_num=6, stddev=0.1):
        self.test_x, self.test_y, self.trainSetLoader, self.x, self.y = None, None, None, None, None  # 数据存储
        self.pop_size = _pop_size  # 种群数
        self.r_mutation = _r_mutation  # 变异里，数据变异的概率
        self.p_mutation = _p_mutation  # 变异概率
        self.elite_num = _elite_num  # 精英数
        self.chroms = []  # 储存所有 model
        self.stddev = stddev  # 网络权值步进大小的最大值
        self.criterion = nn.MSELoss()  # 计算 loss 的方法
        self.model = None  # 全局最优解 model
        self.use_gpu = torch.cuda.is_available()  # 是否可以用 cuda 加速
        self.load_data()  # 加载数据
        self.lr = 0.001  # learning rate

    # 自定义读入数据
    def load_data(self):
        with open('data.csv') as f:
            df = np.loadtxt(f, delimiter=",", skiprows=0)
            self.x = df[:, :-1]
            self.y = df[:, -1:]
        f.close()
        # 创建 train and test
        self.re_data_split()

    # 重新创建不一样的 train and test data set，便于带入到 reload 函数中
    def re_data_split(self):
        train_x, test_x, train_y, test_y = train_test_split(self.x, self.y, test_size=0.3, random_state=42)
        train_x = torch.from_numpy(train_x).float()
        train_y = torch.from_numpy(train_y).float()
        # test 数据
        self.test_x = torch.from_numpy(test_x).float()
        self.test_y = torch.from_numpy(test_y).float()
        trainSet = Data(train_x, train_y)
        # train 池化
        self.trainSetLoader = torch.utils.data.DataLoader(trainSet, batch_size=batch_size, shuffle=False)

    def reload(self, learning_rate, neurons_num):
        # 可选择是否重新分类 test and train
        # self.re_data_split
        self.lr = learning_rate
        for i in range(self.pop_size):
            net = Net(neurons_num, learning_rate)
            if self.use_gpu:
                net = net.cuda()
            self.chroms.append(net)

    # 训练神经网络，返回R^2的值
    """
    对下列博客代码进行改进
    https://blog.csdn.net/Vertira/article/details/122561056
    """
    def train(self, n):
        for epoch in range(n):
            result = [{'pop': i, 'train_acc': float("-inf")} for i in range(self.pop_size)]
            # 为种群训练不同的数据
            for step, (batch_x, batch_y) in enumerate(self.trainSetLoader):
                self.netTrain(batch_x, batch_y, (step + epoch) % self.pop_size)
            # 计算 train accuracy
            for i in range(self.pop_size):
                output = self.chroms[i](self.test_x)
                result[i]["train_acc"] = float(r2(output.data, self.test_y))
            result = sorted(result, key=lambda x: x['train_acc'], reverse=True)
            # self.model 即为类中最优解，可直接套用 test 经行预测
            self.model = self.chroms[result[0]['pop']]
            self.selection(result)
        # 类比精加工，提高准确率，参数可调，可选操作，不想这一步可以注释掉，实践证明有这一步不一定更好
        self.fine_train(n * 50)
        model_output = self.model(self.test_x)
        return float(r2(model_output.data, self.test_y))

    # 网络精细化训练
    def fine_train(self, n=1000):
        # 防止本来梯度就消失
        self.model.optimizer = torch.optim.Adam(self.model.parameters(), lr=self.lr)
        for epoch in range(n):
            for i, (batch_x, batch_y) in enumerate(self.trainSetLoader):
                model_output = self.model(batch_x)
                loss = self.criterion(model_output, batch_y)
                self.model.optimizer.zero_grad()
                loss.backward()
                self.model.optimizer.step()

    def netTrain(self, batch_x, batch_y, now):
        model = self.chroms[now]
        optimizer = model.optimizer
        # 选择每次神经网络训练次数，这个参数影响了训练速度，但跟多时候会影响梯度，很多时候我也不知道为什么梯度就没了，所以太小梯度可能变0或None导致训练停滞，太大训练的有可能变慢
        for j in range(100):
            output = model(batch_x)
            optimizer.zero_grad()
            train_loss = self.criterion(output, batch_y).requires_grad_()
            train_loss.backward()
            optimizer.step()

    # 保留精英个数，并进行交叉操作至种群数满，最后进行变异操作
    def selection(self, result):
        elites = [e['pop'] for e in result[:self.elite_num]]
        # 保留 elites 个精英
        children = [copy.deepcopy(self.chroms[i]) for i in elites]
        # 轮盘赌来选择交配的个体，使用 softmax 处理负数问题
        prob = torch.softmax(torch.tensor([i["train_acc"] for i in result]), dim=0)
        m = Categorical(prob)
        # 随机选择两个交配直至达到种群大小
        while len(children) < self.pop_size:
            # 随机选择两个进行 self.crossover交配
            pair = [result[m.sample()]['pop'], result[m.sample()]['pop']]
            children.append(self.crossover(pair))
        del self.chroms[:]
        self.chroms[:] = children
        # 变异且不变异精英
        for i in range(self.elite_num, self.pop_size):
            # 满足变异概率
            if random.random() < self.p_mutation:
                mutated_child = self.mutation(i)
                del self.chroms[i]
                self.chroms.insert(i, mutated_child)

    def crossover(self, _selected_pop):
        if _selected_pop[0] == _selected_pop[1]:
            return copy.deepcopy(self.chroms[_selected_pop[0]])

        chrom1 = copy.deepcopy(self.chroms[_selected_pop[0]])
        chrom2 = copy.deepcopy(self.chroms[_selected_pop[1]])

        chrom1_layers = nn.ModuleList(chrom1.modules())
        chrom2_layers = nn.ModuleList(chrom2.modules())

        child = torch.nn.Sequential()
        for i in range(len(chrom1_layers)):
            layer1 = chrom1_layers[i]
            layer2 = chrom2_layers[i]
            # 对 Linear 层随机交换
            if isinstance(layer1, nn.Linear):
                child.add_module(str(i - 2), layer1 if random.random() < 0.5 else layer2)

            elif isinstance(layer1, (torch.nn.Sequential, Net)):
                pass
            else:
                child.add_module(str(i - 2), layer1)
        chrom1.set_layer(child)
        chrom1.optimizer = torch.optim.Adam(chrom1.parameters(), lr=self.lr)
        return chrom1

    def mutation(self, _selected_pop):
        child = torch.nn.Sequential()
        chrom = copy.deepcopy(self.chroms[_selected_pop])
        chrom_layers = nn.ModuleList(chrom.modules())
        # 变异比例，选择几层进行变异
        for i, layer in enumerate(chrom_layers):
            if isinstance(layer, nn.Linear):
                # 变异 Linear 层，且有一定变异比例
                if random.random() < self.r_mutation:
                    # 提取权重
                    weights = layer.weight.detach().numpy()
                    # 更改权重
                    w = weights.astype(np.float32) + np.random.normal(0, self.stddev, weights.shape).astype(np.float32)
                    # 重新设置
                    layer.weight = torch.nn.Parameter(torch.from_numpy(w))
                child.add_module(str(i - 2), layer)
            elif isinstance(layer, (torch.nn.Sequential, Net)):
                pass
            else:
                child.add_module(str(i - 2), layer)
        chrom.set_layer(child)
        chrom.optimizer = torch.optim.Adam(chrom.parameters(), lr=self.lr)
        return chrom


# 自定义 GA，对 learning rate and neurons num 经行改变
class My_nsga(ea.Problem):
    def __init__(self, epoch):
        if "result" not in os.listdir():
            os.makedirs("./result")
        name = 'GA-NET'
        M = 1
        maxormins = [-1] * M
        Dim = 2
        varTypes = [1] * Dim
        lb = [10, 10]
        ub = [500, 100]
        lbin = [1] * Dim
        ubin = [1] * Dim
        self.count = 1
        self.epoch = epoch
        self.train = NetTrainGA()

        ea.Problem.__init__(self, name, M, maxormins, Dim, varTypes, lb, ub, lbin, ubin)

    # 目标函数即神经网络返回值
    def evalVars(self, Vars):
        ans = np.zeros(len(Vars)).reshape(len(Vars), 1)
        for i in range(len(Vars)):
            self.train.reload(Vars[i][0] / 10000, Vars[i][1])
            # 括号内参数表示单个神经网络训练次数
            data = self.train.train(self.epoch)
            print("learning rate = {}, neurons num = {}, R^2 = {}".format(Vars[i][0] / 10000, Vars[i][1], round(data, 3)))
            torch.save(self.train.model, "./result/lr{}num{}epoch{}r2{}.pt".format(Vars[i][0] / 10000, Vars[i][1], self.epoch, round(data, 3)))
            # 达到一定准确率停止
            if data >= 1:
                torch.save(self.train.model, "lr{}num{}epoch{}r2{}.pt".format(Vars[i][0] / 10000, Vars[i][1], self.epoch, round(data, 3)))
                return 0
            ans[i] = float(data)
        return ans


# 运行 GA
class Run_nsga:
    def __init__(self, epoch=10, ndind=10, maxgen=10):
        problem = My_nsga(epoch)
        myAlgorithm = ea.soea_EGA_templet(problem, ea.Population(Encoding='RI', NIND=ndind), MAXGEN=maxgen, logTras=0)
        myAlgorithm.drawing = 0
        res = ea.optimize(myAlgorithm, seed=1, verbose=False, drawing=0, outputMsg=True, drawLog=False, saveFlag=False, dirName='result')
        print(res)
        print(res['Vars'][0])


if __name__ == "__main__":
    # 括号内参数表示单个神经网络训练次数，种群数，GA迭代数
    Run_nsga(100, 10, 10)
    """
    # 也可以单独调用 NetTrainGA，设置初始参数
    netga = NetTrainGA()
    # learning rate, neurons_num
    netga.reload(0.001, 30)
    # epoch
    print(netga.train(1000))
    """

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

256

257

258

259

260

261

262

263

264

265

266

267

268

269

270

271

272

273

274

275

276

277

278

279

280

281

282

283

284

285

import random

import torch.nn as nn

import torch

import geatpy as ea

import numpy as np

import os

import copy

from sklearn.model_selection import train_test_split

from torch.distributions import Categorical

input_dimension = 7

output_dimension = 1

# 该参数在数据较少的输入时也相应变少，最好使得 data_size / batch_size = NetGA_pop_size

batch_size = 100

# 自定义网络

class Net(torch.nn.Module):

def __init__(self, neurons_num, lr):

super(Net, self).__init__()

self.layers = torch.nn.Sequential(

torch.nn.Linear(input_dimension, neurons_num),

torch.nn.ReLU(),

torch.nn.Linear(neurons_num, neurons_num),

torch.nn.ReLU(),

torch.nn.Linear(neurons_num, neurons_num),

torch.nn.ReLU(),

torch.nn.Linear(neurons_num, output_dimension)

)

self.optimizer = torch.optim.Adam(self.parameters(), lr=lr)

def forward(self, x):

return self.layers(x)

def set_layer(self, layers):

self.layers = layers

# r^2 函数

def r2(y_test, y):

return 1 - ((y_test - y) ** 2).sum() / ((y.mean() - y) ** 2).sum()

# Data 类，以便带入自己的data

class Data(torch.utils.data.Dataset):

def __init__(self, data, label):

self.x = data

self.y = label

self.len = len(self.y)

def __len__(self):

return self.len

def __getitem__(self, item):

return self.x[item], self.y[item]

# GA 优化的神经网络训练

class NetTrainGA:

def __init__(self, _pop_size=10, _r_mutation=0.1, _p_mutation=0.1, _elite_num=6, stddev=0.1):

self.test_x, self.test_y, self.trainSetLoader, self.x, self.y = None, None, None, None, None # 数据存储

self.pop_size = _pop_size # 种群数

self.r_mutation = _r_mutation # 变异里，数据变异的概率

self.p_mutation = _p_mutation # 变异概率

self.elite_num = _elite_num # 精英数

self.chroms = [] # 储存所有 model

self.stddev = stddev # 网络权值步进大小的最大值

self.criterion = nn.MSELoss() # 计算 loss 的方法

self.model = None # 全局最优解 model

self.use_gpu = torch.cuda.is_available() # 是否可以用 cuda 加速

self.load_data() # 加载数据

self.lr = 0.001 # learning rate

# 自定义读入数据

def load_data(self):

with open('data.csv') as f:

df = np.loadtxt(f, delimiter=",", skiprows=0)

self.x = df[:, :-1]

self.y = df[:, -1:]

f.close()

# 创建 train and test

self.re_data_split()

# 重新创建不一样的 train and test data set，便于带入到 reload 函数中

def re_data_split(self):

train_x, test_x, train_y, test_y = train_test_split(self.x, self.y, test_size=0.3, random_state=42)

train_x = torch.from_numpy(train_x).float()

train_y = torch.from_numpy(train_y).float()

# test 数据

self.test_x = torch.from_numpy(test_x).float()

self.test_y = torch.from_numpy(test_y).float()

trainSet = Data(train_x, train_y)

# train 池化

self.trainSetLoader = torch.utils.data.DataLoader(trainSet, batch_size=batch_size, shuffle=False)

def reload(self, learning_rate, neurons_num):

# 可选择是否重新分类 test and train

# self.re_data_split

self.lr = learning_rate

for i in range(self.pop_size):

net = Net(neurons_num, learning_rate)

if self.use_gpu:

net = net.cuda()

self.chroms.append(net)

# 训练神经网络，返回R^2的值

"""

对下列博客代码进行改进

https://blog.csdn.net/Vertira/article/details/122561056

"""

def train(self, n):

for epoch in range(n):

result = [{'pop': i, 'train_acc': float("-inf")} for i in range(self.pop_size)]

# 为种群训练不同的数据

for step, (batch_x, batch_y) in enumerate(self.trainSetLoader):

self.netTrain(batch_x, batch_y, (step + epoch) % self.pop_size)

# 计算 train accuracy

for i in range(self.pop_size):

output = self.chroms[i](self.test_x)

result[i]["train_acc"] = float(r2(output.data, self.test_y))

result = sorted(result, key=lambda x: x['train_acc'], reverse=True)

# self.model 即为类中最优解，可直接套用 test 经行预测

self.model = self.chroms[result[0]['pop']]

self.selection(result)

# 类比精加工，提高准确率，参数可调，可选操作，不想这一步可以注释掉，实践证明有这一步不一定更好

self.fine_train(n * 50)

model_output = self.model(self.test_x)

return float(r2(model_output.data, self.test_y))

# 网络精细化训练

def fine_train(self, n=1000):

# 防止本来梯度就消失

self.model.optimizer = torch.optim.Adam(self.model.parameters(), lr=self.lr)

for epoch in range(n):

for i, (batch_x, batch_y) in enumerate(self.trainSetLoader):

model_output = self.model(batch_x)

loss = self.criterion(model_output, batch_y)

self.model.optimizer.zero_grad()

loss.backward()

self.model.optimizer.step()

def netTrain(self, batch_x, batch_y, now):

model = self.chroms[now]

optimizer = model.optimizer

# 选择每次神经网络训练次数，这个参数影响了训练速度，但跟多时候会影响梯度，很多时候我也不知道为什么梯度就没了，所以太小梯度可能变0或None导致训练停滞，太大训练的有可能变慢

for j in range(100):

output = model(batch_x)

optimizer.zero_grad()

train_loss = self.criterion(output, batch_y).requires_grad_()

train_loss.backward()

optimizer.step()

# 保留精英个数，并进行交叉操作至种群数满，最后进行变异操作

def selection(self, result):

elites = [e['pop'] for e in result[:self.elite_num]]

# 保留 elites 个精英

children = [copy.deepcopy(self.chroms[i]) for i in elites]

# 轮盘赌来选择交配的个体，使用 softmax 处理负数问题

prob = torch.softmax(torch.tensor([i["train_acc"] for i in result]), dim=0)

m = Categorical(prob)

# 随机选择两个交配直至达到种群大小

while len(children) < self.pop_size:

# 随机选择两个进行 self.crossover交配

pair = [result[m.sample()]['pop'], result[m.sample()]['pop']]

children.append(self.crossover(pair))

del self.chroms[:]

self.chroms[:] = children

# 变异且不变异精英

for i in range(self.elite_num, self.pop_size):

# 满足变异概率

if random.random() < self.p_mutation:

mutated_child = self.mutation(i)

del self.chroms[i]

self.chroms.insert(i, mutated_child)

def crossover(self, _selected_pop):

if _selected_pop[0] == _selected_pop[1]:

return copy.deepcopy(self.chroms[_selected_pop[0]])

chrom1 = copy.deepcopy(self.chroms[_selected_pop[0]])

chrom2 = copy.deepcopy(self.chroms[_selected_pop[1]])

chrom1_layers = nn.ModuleList(chrom1.modules())

chrom2_layers = nn.ModuleList(chrom2.modules())

child = torch.nn.Sequential()

for i in range(len(chrom1_layers)):

layer1 = chrom1_layers[i]

layer2 = chrom2_layers[i]

# 对 Linear 层随机交换

if isinstance(layer1, nn.Linear):

child.add_module(str(i - 2), layer1 if random.random() < 0.5 else layer2)

elif isinstance(layer1, (torch.nn.Sequential, Net)):

pass

else:

child.add_module(str(i - 2), layer1)

chrom1.set_layer(child)

chrom1.optimizer = torch.optim.Adam(chrom1.parameters(), lr=self.lr)

return chrom1

def mutation(self, _selected_pop):

child = torch.nn.Sequential()

chrom = copy.deepcopy(self.chroms[_selected_pop])

chrom_layers = nn.ModuleList(chrom.modules())

# 变异比例，选择几层进行变异

for i, layer in enumerate(chrom_layers):

if isinstance(layer, nn.Linear):

# 变异 Linear 层，且有一定变异比例

if random.random() < self.r_mutation:

# 提取权重

weights = layer.weight.detach().numpy()

# 更改权重

w = weights.astype(np.float32) + np.random.normal(0, self.stddev, weights.shape).astype(np.float32)

# 重新设置

layer.weight = torch.nn.Parameter(torch.from_numpy(w))

child.add_module(str(i - 2), layer)

elif isinstance(layer, (torch.nn.Sequential, Net)):

pass

else:

child.add_module(str(i - 2), layer)

chrom.set_layer(child)

chrom.optimizer = torch.optim.Adam(chrom.parameters(), lr=self.lr)

return chrom

# 自定义 GA，对 learning rate and neurons num 经行改变

class My_nsga(ea.Problem):

def __init__(self, epoch):

if "result" not in os.listdir():

os.makedirs("./result")

name = 'GA-NET'

M = 1

maxormins = [-1] * M

Dim = 2

varTypes = [1] * Dim

lb = [10, 10]

ub = [500, 100]

lbin = [1] * Dim

ubin = [1] * Dim

self.count = 1

self.epoch = epoch

self.train = NetTrainGA()

ea.Problem.__init__(self, name, M, maxormins, Dim, varTypes, lb, ub, lbin, ubin)

# 目标函数即神经网络返回值

def evalVars(self, Vars):

ans = np.zeros(len(Vars)).reshape(len(Vars), 1)

for i in range(len(Vars)):

self.train.reload(Vars[i][0] / 10000, Vars[i][1])

# 括号内参数表示单个神经网络训练次数

data = self.train.train(self.epoch)

print("learning rate = {}, neurons num = {}, R^2 = {}".format(Vars[i][0] / 10000, Vars[i][1], round(data, 3)))

torch.save(self.train.model, "./result/lr{}num{}epoch{}r2{}.pt".format(Vars[i][0] / 10000, Vars[i][1], self.epoch, round(data, 3)))

# 达到一定准确率停止

if data >= 1:

torch.save(self.train.model, "lr{}num{}epoch{}r2{}.pt".format(Vars[i][0] / 10000, Vars[i][1], self.epoch, round(data, 3)))

return 0

ans[i] = float(data)

return ans

# 运行 GA

class Run_nsga:

def __init__(self, epoch=10, ndind=10, maxgen=10):

problem = My_nsga(epoch)

myAlgorithm = ea.soea_EGA_templet(problem, ea.Population(Encoding='RI', NIND=ndind), MAXGEN=maxgen, logTras=0)

myAlgorithm.drawing = 0

res = ea.optimize(myAlgorithm, seed=1, verbose=False, drawing=0, outputMsg=True, drawLog=False, saveFlag=False, dirName='result')

print(res)

print(res['Vars'][0])

if __name__ == "__main__":

# 括号内参数表示单个神经网络训练次数，种群数，GA迭代数

Run_nsga(100, 10, 10)

"""

# 也可以单独调用 NetTrainGA，设置初始参数

netga = NetTrainGA()

# learning rate, neurons_num

netga.reload(0.001, 30)

# epoch

print(netga.train(1000))

"""

以上均为回归损失计算方法，要计算分类损失只需要修改如下代码。

详情也可见该文章

分类损失

# 修改 y 维度
self.y = df[:, -1]
# 修改损失函数
self.criterion = nn.CrossEntropyLoss()
# 修改 train_y 从 float 变成 long
train_y = torch.from_numpy(train_y).long()
# 修改 train_acc 计算方法
result[i]["train_acc"] = float((output.argmax(dim=1) == self.test_y).sum()) / len(self.test_y)
# 修改 train 输出
return (model_output.argmax(dim=1) == self.test_y).sum() / len(self.test_y)

# 修改 y 维度

self.y = df[:, -1]

# 修改损失函数

self.criterion = nn.CrossEntropyLoss()

# 修改 train_y 从 float 变成 long

train_y = torch.from_numpy(train_y).long()

# 修改 train_acc 计算方法

result[i]["train_acc"] = float((output.argmax(dim=1) == self.test_y).sum()) / len(self.test_y)

# 修改 train 输出

return (model_output.argmax(dim=1) == self.test_y).sum() / len(self.test_y)

NSGA-ii 双目标遗传算法

论文原文《A Fast and Elitist Multiobjective Genetic Algorithm: NSGA-II》，可在IEEE上搜索。

简要叙述：编码交叉变异依然不变，在在此基础上加上了

快速非支配排序
拥挤度
精英策略

非支配排序

支配简述：对于一个点a，他的f1(a), f2(a)……fn(a)都比另一个点b，他的f1(b), f2(b)……fn(b)大，那么a支配b。
非支配即a他的所有值至少有一个小于b，且至少有一个大于b，那么，那么a和b非支配。

NSGA-ii 使用快速非支配排序，具体算法可见代码，根据代码思路自己去画一画。

非支配排序会最终将很多点分成不同rank的类，根据目标所需最大最小不同后续选择对rank不同的排序。

例子代码

import matplotlib.pyplot as plt
import numpy as np

P = np.array([[1, 9], [2, 7], [3, 3],
              [2.5, 10], [4, 4.5], [5, 1],
              [4.5, 7.5], [6, 4], [7, 2], [2, 4], [4, 2]])


def fast_non_dominated_sort(values1, values2):
    S = [[] for i in range(0, len(values1))]
    front = [[]]
    n = [0 for i in range(0, len(values1))]
    rank = [0 for i in range(0, len(values1))]

    for p in range(0, len(values1)):
        S[p] = []
        n[p] = 0
        for q in range(0, len(values1)):
            if (values1[p] > values1[q] and values2[p] > values2[q]) or (values1[p] >= values1[q] and values2[p] > values2[q]) or (
                    values1[p] > values1[q] and values2[p] >= values2[q]):
                if q not in S[p]:
                    S[p].append(q)
            elif (values1[q] > values1[p] and values2[q] > values2[p]) or (values1[q] >= values1[p] and values2[q] > values2[p]) or (
                    values1[q] > values1[p] and values2[q] >= values2[p]):
                n[p] = n[p] + 1
        if n[p] == 0:
            rank[p] = 0
            if p not in front[0]:
                front[0].append(p)
    print(S, n)
    i = 0
    while front[i] != []:
        Q = []
        for p in front[i]:
            for q in S[p]:
                n[q] = n[q] - 1
                if n[q] == 0:
                    rank[q] = i + 1
                    if q not in Q:
                        Q.append(q)
        i = i + 1
        front.append(Q)

    del front[len(front) - 1]
    return front


ans = fast_non_dominated_sort(P[:, 0], P[:, 1])

plt.plot([P[i, 0] for i in ans[0]], [P[i, 1] for i in ans[0]], "b.", markersize=8, label="1")
plt.plot([P[i, 0] for i in ans[1]], [P[i, 1] for i in ans[1]], "y.", markersize=8, label="2")
plt.plot([P[i, 0] for i in ans[2]], [P[i, 1] for i in ans[2]], "k.", markersize=8, label="3")
plt.legend()
plt.show()

import matplotlib.pyplot as plt

import numpy as np

P = np.array([[1, 9], [2, 7], [3, 3],

[2.5, 10], [4, 4.5], [5, 1],

[4.5, 7.5], [6, 4], [7, 2], [2, 4], [4, 2]])

def fast_non_dominated_sort(values1, values2):

S = [[] for i in range(0, len(values1))]

front = [[]]

n = [0 for i in range(0, len(values1))]

rank = [0 for i in range(0, len(values1))]

for p in range(0, len(values1)):

S[p] = []

n[p] = 0

for q in range(0, len(values1)):

if (values1[p] > values1[q] and values2[p] > values2[q]) or (values1[p] >= values1[q] and values2[p] > values2[q]) or (

values1[p] > values1[q] and values2[p] >= values2[q]):

if q not in S[p]:

S[p].append(q)

elif (values1[q] > values1[p] and values2[q] > values2[p]) or (values1[q] >= values1[p] and values2[q] > values2[p]) or (

values1[q] > values1[p] and values2[q] >= values2[p]):

n[p] = n[p] + 1

if n[p] == 0:

rank[p] = 0

if p not in front[0]:

front[0].append(p)

print(S, n)

i = 0

while front[i] != []:

Q = []

for p in front[i]:

for q in S[p]:

n[q] = n[q] - 1

if n[q] == 0:

rank[q] = i + 1

if q not in Q:

Q.append(q)

i = i + 1

front.append(Q)

del front[len(front) - 1]

return front

ans = fast_non_dominated_sort(P[:, 0], P[:, 1])

plt.plot([P[i, 0] for i in ans[0]], [P[i, 1] for i in ans[0]], "b.", markersize=8, label="1")

plt.plot([P[i, 0] for i in ans[1]], [P[i, 1] for i in ans[1]], "y.", markersize=8, label="2")

plt.plot([P[i, 0] for i in ans[2]], [P[i, 1] for i in ans[2]], "k.", markersize=8, label="3")

plt.legend()

plt.show()

拥挤度计算

个人认为很多时候可以用用拥挤距离替代，每个类都分别计算拥挤度，但最终很多时候在算法中只需要计算一个rank的拥挤度。

一个rank中的所有点，其中第一个点和最后一个点的拥挤距离为∞，中间点的距离即delta_y1 + delta_y2。拥挤距离可用delta_y1 / (max(y1) – min(y1)) + delta_y2 / (max(y2) – min(y2))

精英策略

每次从n个种群交叉变异后会生成2n的种群，通过精英策略选取其中前n个进行下一次迭代。策略如下：

rank大/小的优先，看具体题目
如果有个rank加上后在超过了n个个体的种群，则进行拥挤度排序，选取最大/小的直到种群为n个个体。

Github上大佬的代码

# Program Name: NSGA-II.py
# Description: This is a python implementation of Prof. Kalyanmoy Deb's popular NSGA-II algorithm
# Author: Haris Ali Khan
# Supervisor: Prof. Manoj Kumar Tiwari

# Importing required modules
import math
import random
import matplotlib.pyplot as plt


# First function to optimize
def function1(x):
    # value = -x ** 2
    value = x * math.sin(10 * math.pi * x) + 2
    return value


# Second function to optimize
def function2(x):
    # value = -(x - 2) ** 2
    value = 1
    return value


# Function to find index of list
def index_of(a, list):
    for i in range(0, len(list)):
        if list[i] == a:
            return i
    return -1


# Function to sort by values
def sort_by_values(list1, values):
    sorted_list = []
    while len(sorted_list) != len(list1):
        if index_of(min(values), values) in list1:
            sorted_list.append(index_of(min(values), values))
        values[index_of(min(values), values)] = math.inf
    return sorted_list


# Function to carry out NSGA-II's fast non dominated sort
def fast_non_dominated_sort(values1, values2):
    S = [[] for i in range(0, len(values1))]
    front = [[]]
    n = [0 for i in range(0, len(values1))]
    rank = [0 for i in range(0, len(values1))]

    for p in range(0, len(values1)):
        S[p] = []
        n[p] = 0
        for q in range(0, len(values1)):
            if (values1[p] > values1[q] and values2[p] > values2[q]) or (values1[p] >= values1[q] and values2[p] > values2[q]) or (
                    values1[p] > values1[q] and values2[p] >= values2[q]):
                if q not in S[p]:
                    S[p].append(q)
            elif (values1[q] > values1[p] and values2[q] > values2[p]) or (values1[q] >= values1[p] and values2[q] > values2[p]) or (
                    values1[q] > values1[p] and values2[q] >= values2[p]):
                n[p] = n[p] + 1
        if n[p] == 0:
            rank[p] = 0
            if p not in front[0]:
                front[0].append(p)

    i = 0
    while front[i] != []:
        Q = []
        for p in front[i]:
            for q in S[p]:
                n[q] = n[q] - 1
                if n[q] == 0:
                    rank[q] = i + 1
                    if q not in Q:
                        Q.append(q)
        i = i + 1
        front.append(Q)

    del front[len(front) - 1]
    return front


# Function to calculate crowding distance
def crowding_distance(values1, values2, front):
    distance = [0 for i in range(0, len(front))]
    sorted1 = sort_by_values(front, values1[:])
    sorted2 = sort_by_values(front, values2[:])
    distance[0] = 0x6f6f6f6f
    distance[len(front) - 1] = 0x6f6f6f6f
    for k in range(1, len(front) - 1):
        distance[k] = distance[k] + (values1[sorted1[k + 1]] - values1[sorted1[k - 1]]) / (max(values1) - min(values1))
    for k in range(1, len(front) - 1):
        distance[k] = distance[k] + (values2[sorted2[k + 1]] - values2[sorted2[k - 1]]) / (max(values2) - min(values2))
    return distance


# Function to carry out the crossover
def crossover(a, b):
    r = random.random()
    if r > 0.5:
        return mutation((a + b) / 2)
    else:
        return mutation((a - b) / 2)


# Function to carry out the mutation operator
def mutation(solution):
    mutation_prob = random.random()
    if mutation_prob < 1:
        solution = min_x + (max_x - min_x) * random.random()
    return solution


# Main program starts here
pop_size = 20
max_gen = 100

# Initialization
min_x = -1
max_x = 2
solution = [min_x + (max_x - min_x) * random.random() for i in range(0, pop_size)]
gen_no = 0
while gen_no < max_gen:
    function1_values = [function1(solution[i]) for i in range(0, pop_size)]
    function2_values = [function2(solution[i]) for i in range(0, pop_size)]
    non_dominated_sorted_solution = fast_non_dominated_sort(function1_values[:], function2_values[:])
    print("The best front for Generation number ", gen_no, " is")
    for valuez in non_dominated_sorted_solution[0]:
        print(round(solution[valuez], 3), end=" ")
    print("\n")
    crowding_distance_values = []
    for i in range(0, len(non_dominated_sorted_solution)):
        crowding_distance_values.append(crowding_distance(function1_values[:], function2_values[:], non_dominated_sorted_solution[i][:]))
    solution2 = solution[:]
    # Generating offsprings
    while len(solution2) != 2 * pop_size:
        a1 = random.randint(0, pop_size - 1)
        b1 = random.randint(0, pop_size - 1)
        solution2.append(crossover(solution[a1], solution[b1]))
    function1_values2 = [function1(solution2[i]) for i in range(0, 2 * pop_size)]
    function2_values2 = [function2(solution2[i]) for i in range(0, 2 * pop_size)]
    non_dominated_sorted_solution2 = fast_non_dominated_sort(function1_values2[:], function2_values2[:])
    crowding_distance_values2 = []
    for i in range(0, len(non_dominated_sorted_solution2)):
        crowding_distance_values2.append(crowding_distance(function1_values2[:], function2_values2[:], non_dominated_sorted_solution2[i][:]))
    new_solution = []
    for i in range(0, len(non_dominated_sorted_solution2)):
        non_dominated_sorted_solution2_1 = [index_of(non_dominated_sorted_solution2[i][j], non_dominated_sorted_solution2[i]) for j in
                                            range(0, len(non_dominated_sorted_solution2[i]))]
        front22 = sort_by_values(non_dominated_sorted_solution2_1[:], crowding_distance_values2[i][:])
        front = [non_dominated_sorted_solution2[i][front22[j]] for j in range(0, len(non_dominated_sorted_solution2[i]))]
        front.reverse()
        for value in front:
            new_solution.append(value)
            if len(new_solution) == pop_size:
                break
        if len(new_solution) == pop_size:
            break
    solution = [solution2[i] for i in new_solution]
    gen_no = gen_no + 1

# Lets plot the final front now
print(solution[0])
print(function1(solution[0]))
function1 = [i * -1 for i in function1_values]
function2 = [j * -1 for j in function2_values]
plt.xlabel('Function 1', fontsize=15)
plt.ylabel('Function 2', fontsize=15)
plt.scatter(function1, function2)
plt.show()

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

# Program Name: NSGA-II.py

# Description: This is a python implementation of Prof. Kalyanmoy Deb's popular NSGA-II algorithm

# Author: Haris Ali Khan

# Supervisor: Prof. Manoj Kumar Tiwari

# Importing required modules

import math

import random

import matplotlib.pyplot as plt

# First function to optimize

def function1(x):

# value = -x ** 2

value = x * math.sin(10 * math.pi * x) + 2

return value

# Second function to optimize

def function2(x):

# value = -(x - 2) ** 2

value = 1

return value

# Function to find index of list

def index_of(a, list):

for i in range(0, len(list)):

if list[i] == a:

return i

return -1

# Function to sort by values

def sort_by_values(list1, values):

sorted_list = []

while len(sorted_list) != len(list1):

if index_of(min(values), values) in list1:

sorted_list.append(index_of(min(values), values))

values[index_of(min(values), values)] = math.inf

return sorted_list

# Function to carry out NSGA-II's fast non dominated sort

def fast_non_dominated_sort(values1, values2):

S = [[] for i in range(0, len(values1))]

front = [[]]

n = [0 for i in range(0, len(values1))]

rank = [0 for i in range(0, len(values1))]

for p in range(0, len(values1)):

S[p] = []

n[p] = 0

for q in range(0, len(values1)):

if (values1[p] > values1[q] and values2[p] > values2[q]) or (values1[p] >= values1[q] and values2[p] > values2[q]) or (

values1[p] > values1[q] and values2[p] >= values2[q]):

if q not in S[p]:

S[p].append(q)

elif (values1[q] > values1[p] and values2[q] > values2[p]) or (values1[q] >= values1[p] and values2[q] > values2[p]) or (

values1[q] > values1[p] and values2[q] >= values2[p]):

n[p] = n[p] + 1

if n[p] == 0:

rank[p] = 0

if p not in front[0]:

front[0].append(p)

i = 0

while front[i] != []:

Q = []

for p in front[i]:

for q in S[p]:

n[q] = n[q] - 1

if n[q] == 0:

rank[q] = i + 1

if q not in Q:

Q.append(q)

i = i + 1

front.append(Q)

del front[len(front) - 1]

return front

# Function to calculate crowding distance

def crowding_distance(values1, values2, front):

distance = [0 for i in range(0, len(front))]

sorted1 = sort_by_values(front, values1[:])

sorted2 = sort_by_values(front, values2[:])

distance[0] = 0x6f6f6f6f

distance[len(front) - 1] = 0x6f6f6f6f

for k in range(1, len(front) - 1):

distance[k] = distance[k] + (values1[sorted1[k + 1]] - values1[sorted1[k - 1]]) / (max(values1) - min(values1))

for k in range(1, len(front) - 1):

distance[k] = distance[k] + (values2[sorted2[k + 1]] - values2[sorted2[k - 1]]) / (max(values2) - min(values2))

return distance

# Function to carry out the crossover

def crossover(a, b):

r = random.random()

if r > 0.5:

return mutation((a + b) / 2)

else:

return mutation((a - b) / 2)

# Function to carry out the mutation operator

def mutation(solution):

mutation_prob = random.random()

if mutation_prob < 1:

solution = min_x + (max_x - min_x) * random.random()

return solution

# Main program starts here

pop_size = 20

max_gen = 100

# Initialization

min_x = -1

max_x = 2

solution = [min_x + (max_x - min_x) * random.random() for i in range(0, pop_size)]

gen_no = 0

while gen_no < max_gen:

function1_values = [function1(solution[i]) for i in range(0, pop_size)]

function2_values = [function2(solution[i]) for i in range(0, pop_size)]

non_dominated_sorted_solution = fast_non_dominated_sort(function1_values[:], function2_values[:])

print("The best front for Generation number ", gen_no, " is")

for valuez in non_dominated_sorted_solution[0]:

print(round(solution[valuez], 3), end=" ")

print("\n")

crowding_distance_values = []

for i in range(0, len(non_dominated_sorted_solution)):

crowding_distance_values.append(crowding_distance(function1_values[:], function2_values[:], non_dominated_sorted_solution[i][:]))

solution2 = solution[:]

# Generating offsprings

while len(solution2) != 2 * pop_size:

a1 = random.randint(0, pop_size - 1)

b1 = random.randint(0, pop_size - 1)

solution2.append(crossover(solution[a1], solution[b1]))

function1_values2 = [function1(solution2[i]) for i in range(0, 2 * pop_size)]

function2_values2 = [function2(solution2[i]) for i in range(0, 2 * pop_size)]

non_dominated_sorted_solution2 = fast_non_dominated_sort(function1_values2[:], function2_values2[:])

crowding_distance_values2 = []

for i in range(0, len(non_dominated_sorted_solution2)):

crowding_distance_values2.append(crowding_distance(function1_values2[:], function2_values2[:], non_dominated_sorted_solution2[i][:]))

new_solution = []

for i in range(0, len(non_dominated_sorted_solution2)):

non_dominated_sorted_solution2_1 = [index_of(non_dominated_sorted_solution2[i][j], non_dominated_sorted_solution2[i]) for j in

range(0, len(non_dominated_sorted_solution2[i]))]

front22 = sort_by_values(non_dominated_sorted_solution2_1[:], crowding_distance_values2[i][:])

front = [non_dominated_sorted_solution2[i][front22[j]] for j in range(0, len(non_dominated_sorted_solution2[i]))]

front.reverse()

for value in front:

new_solution.append(value)

if len(new_solution) == pop_size:

break

if len(new_solution) == pop_size:

break

solution = [solution2[i] for i in new_solution]

gen_no = gen_no + 1

# Lets plot the final front now

print(solution[0])

print(function1(solution[0]))

function1 = [i * -1 for i in function1_values]

function2 = [j * -1 for j in function2_values]

plt.xlabel('Function 1', fontsize=15)

plt.ylabel('Function 2', fontsize=15)

plt.scatter(function1, function2)

plt.show()

优化算法的学习

个人关于优化算法的学习历程：SA GA TSP PSO NSGA-ii

下列代码为个人学习及复现的过程，不一定很正确，有一定参考性，NSGA-ii不在此展示，详情可见下一篇。

退火（SA）

退火简述：个人认为有点像穷举，在x附近左右横跳，达到条件降温，没达到升温

from math import *
from random import random

# 方程或问题的计算
func = lambda x, y: cos(x * y) + x * y + y ** 3 + x ** 2
x_min = -100
y_min = -100
x_max = 100
y_max = 100

# 设置 SA 参数
e = 1e-50
L = 2000000
at = 0.999
T = 1

# 选取 x(0)
x = random() * (x_max - x_min) + x_min
y = random() * (y_max - y_min) + y_min
result = func(x, y)

# 循环
for _ in range(L):
    # 计算 x‘ ，需要选取合适的计算方法，以下为两种计算方法，各有利弊
    # x_ = random() * (x_max - x_min) + x_min
    # y_ = random() * (y_max - y_min) + y_min
    step = 0.1
    x_ = x + (random() * (x_max - x_min) + x_min) * step
    x_ = x_max if x_ > x_max else x_min if x_ < x_min else x_
    y_ = y + (random() * (y_max - y_min) + y_min) * step
    y_ = y_max if y_ > y_max else y_min if y_ < y_min else y_
    result_ = func(x_, y_)

    # 判断是否满足退火条件
    if result_ - result < 0 or exp((result - result_) / T) > random():
        # 更新
        result = result_
        x = x_
        y = y_

    # 温度降低 降低到一定值推出
    T *= at
    if T < e:
        break

print(result, x, y)

from math import *

from random import random

# 方程或问题的计算

func = lambda x, y: cos(x * y) + x * y + y ** 3 + x ** 2

x_min = -100

y_min = -100

x_max = 100

y_max = 100

# 设置 SA 参数

e = 1e-50

L = 2000000

at = 0.999

T = 1

# 选取 x(0)

x = random() * (x_max - x_min) + x_min

y = random() * (y_max - y_min) + y_min

result = func(x, y)

# 循环

for _ in range(L):

# 计算 x‘ ，需要选取合适的计算方法，以下为两种计算方法，各有利弊

# x_ = random() * (x_max - x_min) + x_min

# y_ = random() * (y_max - y_min) + y_min

step = 0.1

x_ = x + (random() * (x_max - x_min) + x_min) * step

x_ = x_max if x_ > x_max else x_min if x_ < x_min else x_

y_ = y + (random() * (y_max - y_min) + y_min) * step

y_ = y_max if y_ > y_max else y_min if y_ < y_min else y_

result_ = func(x_, y_)

# 判断是否满足退火条件

if result_ - result < 0 or exp((result - result_) / T) > random():

# 更新

result = result_

x = x_

y = y_

# 温度降低降低到一定值推出

T *= at

if T < e:

break

print(result, x, y)

遗传（GA）

遗传简述：对问题编码，可以是二进制也可以是十进制或者是排列（各位都不一样），交叉，变异进化，其中会包含精英保留等操作，NSGA在此基础上加上了非支配排序。

from math import sin, pi
from random import randint, random
from operator import itemgetter, attrgetter

# 方程或问题的计算
func = lambda x: x * sin(10 * pi * x) + 2
x_min = -1
x_max = 2

# 设置遗传算法各种参数，分别代表：小数点后精度(epsilon)，编码位数(coding digit)，交叉变换位置(t)，交叉概率(pc)，变异概率(pm)，种群大小(M)，循环次数(L)
epsilon = 6
coding_digit = 22
t = 4
pc = 0.8
pm = 0.2
M = 1000
L = 100


# 初始化种群
class Population:
    x = None
    xFlag = 1
    result = None

    def __init__(self, x):
        self.x = abs(x_max if x > x_max else x_min if x < x_min else x)
        self.xFlag = 1 if x > 0 else -1
        self.result = func(self.x * self.xFlag)


population = []
for i in range(M):
    x = (x_max - x_min) / M * i + x_min
    population.append(Population(x))


def binary(X: float) -> list:
    X = list(bin(int(X * 10 ** epsilon)))[2:]
    return ["0" for i in range(coding_digit - len(X))] + X


def decimal(X: list) -> float:
    return int("".join(X), 2) / 10 ** epsilon


def cross(X: list, Y: list) -> [list, list]:
    X_ = X[:t] + Y[t:]
    Y_ = Y[:t] + X[t:]
    return X_, Y_


def variation(X: list) -> list:
    # 可以固定变异的位置也可以随机，以下设置为随机
    position = randint(0, coding_digit - 1)
    X[position] = "1" if X[position] == "0" else "0"
    return X


for _ in range(L):
    # 对种群进行排序，并选出最小的种群
    population = sorted(population, key=lambda X: X.result, reverse=True)
    population = population[:M]
    # 交叉
    for i in range(0, M, 2):
        if random() < pc:
            x1, x2 = cross(binary(population[i].x), binary(population[i + 1].x))
            x1 = decimal(x1) * population[i].xFlag
            x2 = decimal(x2) * population[i + 1].xFlag
            population.append(Population(x1))
            population.append(Population(x2))
    # 变异
    length = len(population)
    for i in range(length):
        if random() < pm:
            x = decimal(variation(binary(population[i].x))) * population[i].xFlag
            population.append(Population(x))

sorted(population, key=lambda X: X.result)
ans = population[0]
print(ans.x * ans.xFlag, ans.result)

from math import sin, pi

from random import randint, random

from operator import itemgetter, attrgetter

# 方程或问题的计算

func = lambda x: x * sin(10 * pi * x) + 2

x_min = -1

x_max = 2

# 设置遗传算法各种参数，分别代表：小数点后精度(epsilon)，编码位数(coding digit)，交叉变换位置(t)，交叉概率(pc)，变异概率(pm)，种群大小(M)，循环次数(L)

epsilon = 6

coding_digit = 22

t = 4

pc = 0.8

pm = 0.2

M = 1000

L = 100

# 初始化种群

class Population:

x = None

xFlag = 1

result = None

def __init__(self, x):

self.x = abs(x_max if x > x_max else x_min if x < x_min else x)

self.xFlag = 1 if x > 0 else -1

self.result = func(self.x * self.xFlag)

population = []

for i in range(M):

x = (x_max - x_min) / M * i + x_min

population.append(Population(x))

def binary(X: float) -> list:

X = list(bin(int(X * 10 ** epsilon)))[2:]

return ["0" for i in range(coding_digit - len(X))] + X

def decimal(X: list) -> float:

return int("".join(X), 2) / 10 ** epsilon

def cross(X: list, Y: list) -> [list, list]:

X_ = X[:t] + Y[t:]

Y_ = Y[:t] + X[t:]

return X_, Y_

def variation(X: list) -> list:

# 可以固定变异的位置也可以随机，以下设置为随机

position = randint(0, coding_digit - 1)

X[position] = "1" if X[position] == "0" else "0"

return X

for _ in range(L):

# 对种群进行排序，并选出最小的种群

population = sorted(population, key=lambda X: X.result, reverse=True)

population = population[:M]

# 交叉

for i in range(0, M, 2):

if random() < pc:

x1, x2 = cross(binary(population[i].x), binary(population[i + 1].x))

x1 = decimal(x1) * population[i].xFlag

x2 = decimal(x2) * population[i + 1].xFlag

population.append(Population(x1))

population.append(Population(x2))

# 变异

length = len(population)

for i in range(length):

if random() < pm:

x = decimal(variation(binary(population[i].x))) * population[i].xFlag

population.append(Population(x))

sorted(population, key=lambda X: X.result)

ans = population[0]

print(ans.x * ans.xFlag, ans.result)

蚁群（TSP）

蚁群简述：信息素的更新与获取，信息素可以不用完全按照公式，根据具体题目可以有所不同。

from math import sin, pi
from random import random, choice
import numpy as np
import matplotlib.pyplot as plt

func = lambda x: x * sin(10 * pi * x) + 2
x_min = -1
x_max = 2

# alpha = 2.5
# beta = 1
rou = 0.2
M = 100
L = 700
step = 1
Q = 1

population = []
t = []
possibility = []
for i in range(M):
    population.append(random() * (x_max - x_min) + x_min)
    t.append(func(population[i]))
    possibility.append(1 / t[i])

t_max = []
for loop in range(1, L + 1):
    step = 1 / loop
    tBest = max(t)
    for i in range(M):
        possibility[i] = (tBest - t[i]) / tBest
        if possibility[i] < random():
            population[i] += step * choice([-1, 1])
        else:
            population[i] += choice([-1, 1]) * random() * (x_max - x_min) / 2
        population[i] = x_min if population[i] < x_min else x_max if population[i] > x_max else population[i]
        t[i] = rou * t[i] + Q * func(population[i])
    t_max.append(func(population[t.index(max(t))]))

I = t.index(max(t))
print(population[I], func(population[I]))
plt.plot(np.linspace(1, L, L), t_max)
plt.show()

from math import sin, pi

from random import random, choice

import numpy as np

import matplotlib.pyplot as plt

func = lambda x: x * sin(10 * pi * x) + 2

x_min = -1

x_max = 2

# alpha = 2.5

# beta = 1

rou = 0.2

M = 100

L = 700

step = 1

Q = 1

population = []

t = []

possibility = []

for i in range(M):

population.append(random() * (x_max - x_min) + x_min)

t.append(func(population[i]))

possibility.append(1 / t[i])

t_max = []

for loop in range(1, L + 1):

step = 1 / loop

tBest = max(t)

for i in range(M):

possibility[i] = (tBest - t[i]) / tBest

if possibility[i] < random():

population[i] += step * choice([-1, 1])

else:

population[i] += choice([-1, 1]) * random() * (x_max - x_min) / 2

population[i] = x_min if population[i] < x_min else x_max if population[i] > x_max else population[i]

t[i] = rou * t[i] + Q * func(population[i])

t_max.append(func(population[t.index(max(t))]))

I = t.index(max(t))

print(population[I], func(population[I]))

plt.plot(np.linspace(1, L, L), t_max)

plt.show()

粒子群（PSO）

粒子群简述：速度的更新，包含个人学习速率和社会学习速率，不同点的速度不同，更新的速度不同。

from math import cos
from random import random
import numpy as np

# 方程或问题的计算
func = lambda x, y: -(cos(x * y) + x * y + y ** 3 + x ** 2)
x_min = -100
y_min = -100
x_max = 100
y_max = 100

# 设置参数
L = 100
omega = 1
groupLR = 0.5
socialLR = 1.5
M = 20
v_min = -1
v_max = 1

# 初始化种群
population = np.zeros(M * 2).reshape(M, 2)
v = np.zeros(M * 2).reshape(M, 2)
fitness = np.zeros(M)
for i in range(M):
    population[i][0] = random() * (x_max - x_min) + x_min
    population[i][1] = random() * (x_max - x_min) + x_min
    v[i][0] = random() * (x_max - x_min) + x_min
    v[i][1] = random() * (x_max - x_min) + x_min
    fitness[i] = func(population[i][0], population[i][1])

# 初始化个人与种群最优解
# M * 2
personalBestFitness = fitness.copy()
personalPopulation = population.copy()
# 2 * 2
groupBest = population[fitness.argmax()].copy()
groupBestFitness = fitness.max()

for _ in range(L):
    for i in range(len(fitness)):
        # 更新速度
        # 随时间适应度 + 个人学习速率 * （个人最好 - 当前） + 社会学习速率 * （团队最好 - 当前）
        v[i] = omega * v[i] + groupLR * random() * (personalPopulation[i] - population[i]) + socialLR * random() * (groupBest - population[i])
    v[v < v_min] = v_min
    v[v > v_max] = v_max

    for i in range(len(fitness)):
        # 更新位置
        population[i] += v[i]
        population[i][0] = x_min if population[i][0] < x_min else x_max if population[i][0] > x_max else population[i][0]
        population[i][1] = y_min if population[i][1] < y_min else y_max if population[i][1] > y_max else population[i][1]

        # 适应度更新
        fitness[i] = func(population[i][0], population[i][1])

        # 个人最好更新
        if fitness[i] > personalBestFitness[i]:
            personalBestFitness[i] = fitness[i]
            personalPopulation[i] = population[i].copy()

    # 团队最好更新
    if personalBestFitness.max() > groupBestFitness:
        groupBestFitness = personalBestFitness.max()
        groupBest = population[personalBestFitness.argmax()].copy()

print(groupBestFitness, groupBest[0], groupBest[1])

from math import cos

from random import random

import numpy as np

# 方程或问题的计算

func = lambda x, y: -(cos(x * y) + x * y + y ** 3 + x ** 2)

x_min = -100

y_min = -100

x_max = 100

y_max = 100

# 设置参数

L = 100

omega = 1

groupLR = 0.5

socialLR = 1.5

M = 20

v_min = -1

v_max = 1

# 初始化种群

population = np.zeros(M * 2).reshape(M, 2)

v = np.zeros(M * 2).reshape(M, 2)

fitness = np.zeros(M)

for i in range(M):

population[i][0] = random() * (x_max - x_min) + x_min

population[i][1] = random() * (x_max - x_min) + x_min

v[i][0] = random() * (x_max - x_min) + x_min

v[i][1] = random() * (x_max - x_min) + x_min

fitness[i] = func(population[i][0], population[i][1])

# 初始化个人与种群最优解

# M * 2

personalBestFitness = fitness.copy()

personalPopulation = population.copy()

# 2 * 2

groupBest = population[fitness.argmax()].copy()

groupBestFitness = fitness.max()

for _ in range(L):

for i in range(len(fitness)):

# 更新速度

# 随时间适应度 + 个人学习速率 * （个人最好 - 当前） + 社会学习速率 * （团队最好 - 当前）

v[i] = omega * v[i] + groupLR * random() * (personalPopulation[i] - population[i]) + socialLR * random() * (groupBest - population[i])

v[v < v_min] = v_min

v[v > v_max] = v_max

for i in range(len(fitness)):

# 更新位置

population[i] += v[i]

population[i][0] = x_min if population[i][0] < x_min else x_max if population[i][0] > x_max else population[i][0]

population[i][1] = y_min if population[i][1] < y_min else y_max if population[i][1] > y_max else population[i][1]

# 适应度更新

fitness[i] = func(population[i][0], population[i][1])

# 个人最好更新

if fitness[i] > personalBestFitness[i]:

personalBestFitness[i] = fitness[i]

personalPopulation[i] = population[i].copy()

# 团队最好更新

if personalBestFitness.max() > groupBestFitness:

groupBestFitness = personalBestFitness.max()

groupBest = population[personalBestFitness.argmax()].copy()

print(groupBestFitness, groupBest[0], groupBest[1])

DQN

参考代码

Actor Critic

CSDN 参考代码

Github 参考代码

A2C A3C

DDPG

TD3

强化学习算法选择

利用 GA 求神经网络最优的learning rate和隐藏层的神经元个数

GA-NET v1.0

对于图片的识别，进行了相关优化

GA-NET v2.0

在神经网络中也加入GA来加快神经网络训练速度

GA-NET v3.0

以上均为回归损失计算方法，要计算分类损失只需要修改如下代码。

分类损失

非支配排序

例子代码

拥挤度计算

精英策略

Github上大佬的代码

退火（SA）

遗传（GA）

蚁群（TSP）

粒子群（PSO）
